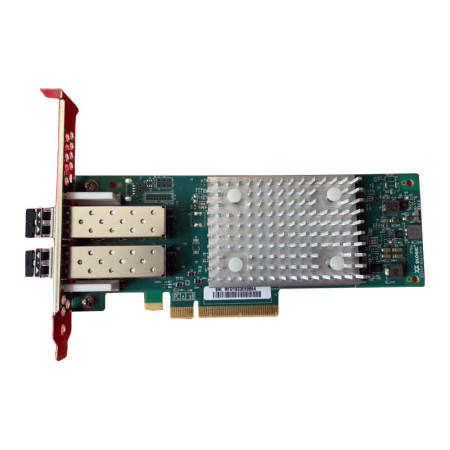

[QLE2742] Qlogic QLE2742-SR-CK PCIe 3.0 x8 Dual-port 32GFC SR-Optic SFP+ 32Gb Fibre Channel Adapter

Features

Industry's first 32GFC HBA available in single, dual, and quad-port versions
Up to four ports of 32GFC deliver 25,600MBps aggregate throughput
Up to 2.6 million IOPS fuel high performance in AFA and high-density virtualized environments
FC-NVMe capability allows simultaneous access to NVMe and FCP Storage on the same port
StorFusion technology, powered by Marvell QLogic, enhances reliability, diagnostics, and accelerates deployment
Port isolation design offers deterministic and scalable performance on each port

Host Bus Interface Specifications

Bus Interface
QLE2740: PCI Express® (PCIe) 3.1 × 8 (single-port)
QLE2742: PCIe 3.1 × 8 (dual-port)
QLE2764: PCIe 3.1 × 16 (quad-port)
Host Interrupts
INTx and MSI-X
Compliance
PCIe Base Specification, rev. 3.1
PCIe Card Electromechanical Specification, rev. 3.0
PCI Bus Power Management Interface Specification, rev. 1.2
PCI Hot Plug Specification, rev. 1.1

Fibre Channel Specifications

Throughput
6,400MBps full duplex line rate per port
Logins
Support for 2,048 concurrent logins and 2,048 active exchanges per port
Expandable to 32K concurrent logins and 32K active exchanges (QLE2764)
Port Virtualization
NPIV
Compliance
SCSI Fibre Channel Protocol 4 (FCP-4)
Fibre Channel Tape (FC-TAPE) Profile
Fibre Channel Generic Services 8 (FC-GS-8)
Fibre Channel-Physical Interface-5 (FC-PI-5)
Fibre Channel-Physical Interface-6 (FC-PI-6)
Fibre Channel Link Services 4 (FC-LS-5)
Fibre Channel Framing and Signaling 5 (FC-FS-5)
Fibre Channel NVMe-2 (FC-NVMe-2)

Physical Specifications

Ports
QLE2740: single-port 32GFC
QLE2742: dual-port 32GFC
QLE2764: quad-port 32GFC
Form Factor
QLE2740: low profile PCIe card (6.6 inches × 2.731 inches)
QLE2742: low profile PCIe card (6.6 inches × 2.731 inches)
QLE2764: standard height PCIe card (6.6 inches × 4.38 inches)

Ordering Information

QLE2740-SR-CK (Single Port)
Ships in an individually packed box with a standard-height bracket installed
Ships with SR optical transceiver installed
QLE2742-SR-CK (Dual Port)
Ships in an individually packed box with a standard-height bracket installed
Ships with SR optical transceivers installed
QLE2764-SR-CK (Quad Port)
Ships in an individually packed box with a standard-height bracket installed
Ships with SR optical transceivers installed
