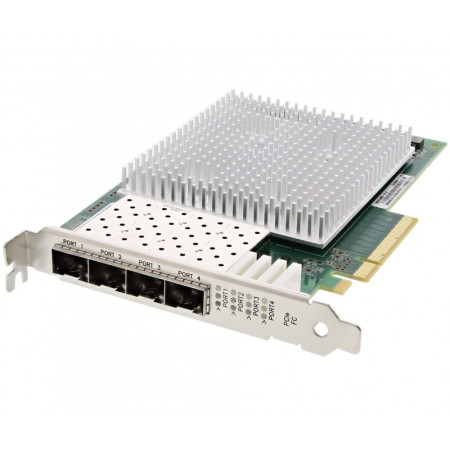

[QLE2694] Qlogic QLE2694-SR-CK PCIe 3.0 x8 Quad-port 16GFC SR-Optic SFP+ Full Height 16Gb Fibre Channel Adapter

Features

Industry’s first native quad-port solution supporting 16GFC technology
Four ports of 16GFC Enhanced Gen 5 FC deliver 12,800MBps aggregate bandwidth
Up to 2.6 million IOPS fuel high performance in AFAs and highdensity virtualized environments
FC-NVMe capability allows concurrent access to NVMe™ and FCP Storage on the same port
Enhanced reliability, diagnostics and accelerated deployment powered by QLogic® StorFusion™ technology
Port isolation design offers consistent and reliable performance on each port
Host Bus Interface Specifications

Bus Interface
QLE2694: PCI Express® 3.0 x8
QLE2694L: PCI Express 3.0 x8
Host Interrupts
INTx and MSI-X
Compliance
PCI Express Base Specification, Rev. 3.1
PCI Express Card Electromechanical Specification, Rev. 3.0
PCI Bus Power Management Interface Specification, Rev. 1.2
Fibre Channel Specifications

Throughput
3,200MBps bandwidth per port
Logins
Support for 2,048 concurrent logins and 2,048 active exchanges
Expandable to 32K concurrent logins and 32K active exchanges (with DDR3 or host memory)
Port Virtualization
NPIV
Compliance
SCSI-3 Fibre Channel Protocol (SCSI-FCP)
Fibre Channel Tape (FC-TAPE) Profile
SCSI Fibre Channel Protocol-2 (FCP-2)
Second Generation Fibre Channel Generic Services (FC-GS-2)
Third Generation Fibre Channel Generic Services (FC-GS-3)
Fibre Channel Physical Interface 5 (FC-PI5)
Physical Specifications

Ports
Quad-port, 16GFC
Form Factor
QLE2694: Standard-height PCIe card (6.6 inches×4.381 inches)
QLE2694L: Low-profile PCIe card (6.6 inches×2.731 inches)
