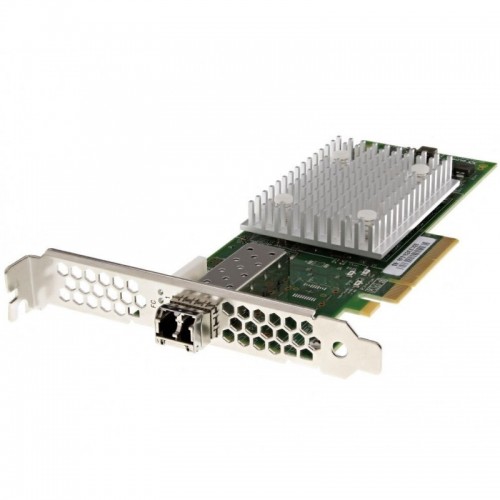

[QLE2690] Qlogic QLE2690-SR-CK PCIe 3.0 x8 Single-port 16GFC SR-Optic SFP+ Low Profile 16Gb Fibre Channel Adapter

Features

The latest and most advanced 16GFC HBA from Marvell, available in single- and dualport versions
Up to 1.3 million IOPS fuel high performance in AFA and high-density virtualized environments
Marvell StorFusion™ technology accelerates deployment, simplifies diagnostics, enhances reliability, and optimizes performance
NVMe over Fibre Channel capability allows simultaneous access to NVMe and SCSI based Storage on the same port
Port isolation design offers deterministic and scalable performance on each port
Host Bus Interface Specifications

Bus Interface
QLE2690/2692 PCI Express® (PCIe®) 3.0 x8.
Host Interrupts
INTx and MSI-X
Compliance
PCI Express Base Specification, Rev. 3.1
PCI Express Card Electromechanical Specification, Rev. 3.0
PCI Bus Power Management Interface Specification, Rev. 1.2
PCI Hot Plug Specification, Rev 1.1
Fibre Channel Specifications

Throughput
3,200MBps full duplex line rate per port
Logins
Support for 2,048 concurrent logins and 2,048 active exchanges per port
Port Virtualization
NPIV
Compliance
Fibre Channel Physical Interface 5 (FC-PI5)
Fibre Channel Tape (FC-TAPE) Profile
SCSI Fibre Channel Protocol-4 (FCP-4)
SCSI-3 Fibre Channel Protocol (SCSI-FCP)
Second Generation Fibre Channel Generic Services (FC-GS-2)
Third Generation Fibre Channel Generic Services (FC-GS-3)
Fibre Channel-NVMe-2 (FC-NVMe-2)
Physical Specifications

Ports
QLE2690: single-port, 16GFC
QLE2692: dual-port, 16GFC
Form Factor
Low-profile PCIe card (6.6 inches × 2.731 inches)
Custom form factors are also available
