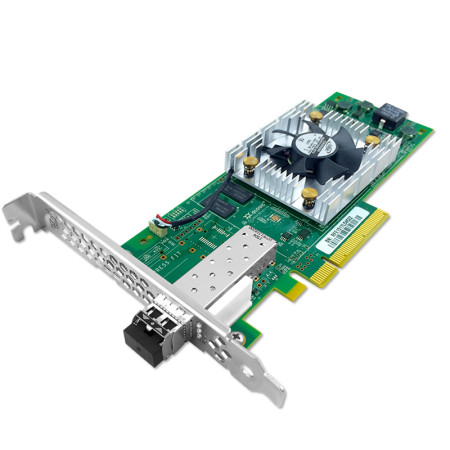

[QLE2670] Qlogic QLE2670-CK PCIe 3.0 x8 Single-port 16GFC SR-Optic Low Profile 16Gb Fibre Channel Adapter

Host Bus Interface Specifications

Bus Interface
PCI Express® 3.0 x4 and 2.0 x8 (x8 physical connector)
Host Interrupts
INTx and MSI-X
Compliance
PCI Express Base Specification, Rev. 3.0
PCI Express Card Electromechanical Specification, Rev. 3.0
PCI Bus Power Management Interface Specification, Rev. 1.2
Fibre Channel Specifications

Throughput
1,600MBps line rate per port (maximum)
Logins
Support for 2,048 concurrent logins and 2,048 active exchanges
Expandable to 16K concurrent logins and 32K active exchanges
Port Virtualization
NPIV
Compliance
Fibre Channel Tape (FC-TAPE) Profile
Fibre Channel Protocol – 4 (FCP-4)
SCSI Architecture Model – 5 (SAM-5)
SCSI Primary Commands – 5 (SPC-5)
SCSI Block Commands – 4 (SBC-4)
Fibre Channel Generic Services – 8 (FC-GS-8)
Fibre Channel Framing and Signaling – 5 (FC-FS-5)
Fibre Channel Link Services – 4 (FC-LS-4)
Fibre Channel Physical Interface – 5 (FC-PI-5)
Physical Specifications

Ports
QLE2670: single-port 16GFC
QLE2672: dual-port 16GFC
Form Factor
Low profile adapter: (6.6 inches × 2.54 inches)
Custom form factors are also available
