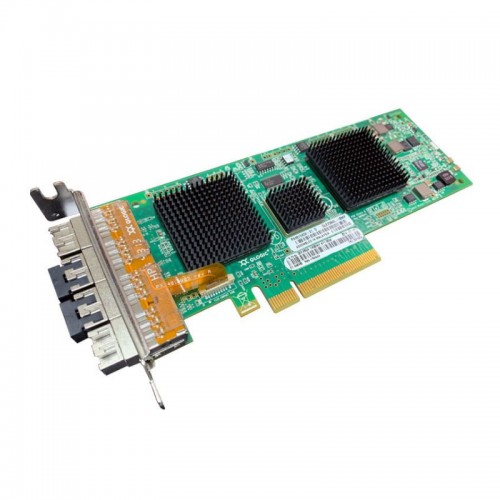

[QLE2564L] Qlogic QLE2564-CK PCIe 2.0 x8 Quad-port 8GFC SR-Optic Full Height Fibre Channel Adapter

Fibre Channel Specifications
Negotiation
8/4/2Gbps auto-negotiation
IOPS
Up to 200,000 initiator and target IOPS per port
Class of Service
2 and 3
Topology
FC-AL, FC-AL2, point-to-point, and switched fabric
Protocols
FCP-3-SCSI
FC-Tape (FCP-2)
Cable Distances （Multimode optic）
2GFC: 150m @ OM1, 300m @ OM2, 500m @ OM3
4GFC: 70m @ OM1, 150m @ OM2, 300m @ OM3
8GFC: 21m @ OM1, 50m @ OM2, 150m @ OM3

PCI Express Interface
Compliance
PCI Express Base Specification, rev. 2.0
PCI Express Card Electromechanical
Specification, rev. 2.0
PCI Bus Power Management Interface
Specification, rev. 1.2
PCI Hot Plug Specification, rev. 1.0
Physical and Electrical
PCIe x8 physical connector
StarPower link training:
Maximum x4 lanes for Gen 2.0 rate
Maximum x8 lanes for Gen1 rate

Connectivity
Ports
QLE2560: single 8Gbps Fibre Channel
QLE2562: dual 8Gbps Fibre Channel
QLE2564 and QLE2564L: quad 8Gbps Fibre Channel

Host Bus Adapter Specifications
Airflow
No airflow required
Power Consumption
QLE2560: 5.5 watts (typical)
QLE2562: 6.2 watts (typical)
QLE2564 and QLE2564L: 13 watts (typical)
Form Factor
QLE2560, QLE2562, and QLE2564L
Low-profile PCIe cards (6.6in. × 2.54in.)
QLE2564
Full-height PCIe card (6.6in. × 4.376in.)
Temperature
Operating: 0°C to 55°C (32°F to 131°F)
Non-operating: –40°C to 70°C (-40°F to 158°F)
Relative Humidity
Operating, non-condensing: 10% to 90%
Non-operating, non-condensing: 5% to 93%
RoHS Compliance
RoHS 6
