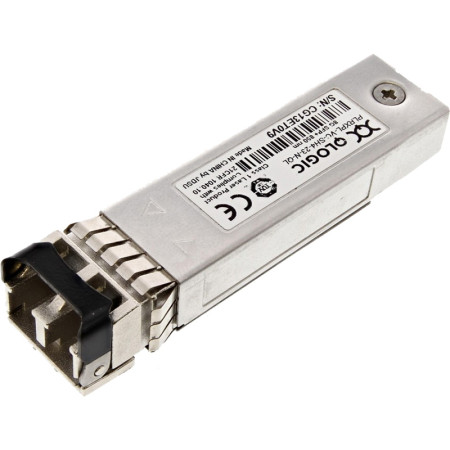

[PLRXPL-VC-SH4-23-N-QL] Qlogic 8G FC SW 850nm SFP+ Transceiver Module

Features
Genuine Qlogic PLRXPL-VC-SH4-23-N-QL
Compliant to industry-wide, 8 G Fibre Channel (FC) link specifi cations
Maintains FC compliance at 4 and 2 G without need for a rate select option
Uses a highly reliable, 850 nm oxide VCSEL
Lead-free and RoHS 6/6-compliant
0 – 70°C case operating temperature
Single 3.3 V power supply
Low power consumption (typically 450 mW)
Bit error rate < 1 x 10
Hot pluggable

Applications
High-speed storage area networks
Switches and hubs
Network interface cards
Mass storage systems
Host bus adapters
Computer cluster crossconnect systems
Custom high-bandwidth data pipes

Compliance
SFF 8431 Revision 2.2
FC-PI-4
SFF 8432 Revision 5.0
SFF 8472 Revision 10.3
CDRH and IEC60825-1 Class 1 Laser Eye Safety
FCC Class B
ESD Class 2 per MIL-STD 883 Method 3015
UL 94, V0
Reliability tested per Telcordia GR-468

Specifications
Brand: Qlogic
Part Number: PLRXPL-VC-SH4-23-N-QL
MFGR: JDSU
MPN: PLRXPL-Vx-SH4-23-N
Form Type: SFP+
Speed: 8.5Gbps
Connector: Duplex LC
Media: MMF
Wavelength: 850nm
Max Cable Distance: 150m @ 8.5Gbps
Optical Components: VCSEL 850nm
Diagnostics: Digital
Operating Temperature: 0 to 70°C (32 to 158°F)
