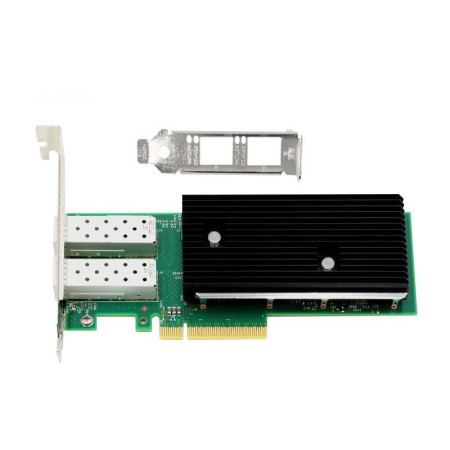

[X722-DA2] Intel 10Gbps Dual Port SFP+ Ethernet PCI Express 3.0 x8 Network Adapter

Features

iWARP RDMA
PCI Express (PCIe) v3.0, x8
Network Virtualization offloads: VxLAN, GENEVE, and NVGRE
Intel Ethernet Flow Director for hardware based application traffic steering
Data Plane Development Kit (DPDK) optimized for efficient packet processing
Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
Intelligent offloads to enable high performance on servers with Intel Xeon Processors
I/0 virtualization innovations for maximum performance in a virtualized server
Specifications

Data Rate Supported Per Port
Optical: 10GbE
Direct Attach: 10GbE
Bus Type: PCle 3.0 (8 GT/s)
Bus Width: PCle x8
Interrupt Levels: INTA, MSI, MSI-X
Hardware Certifications: FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
Controller: Intel C628 Chipset
Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F)
Airflow
Dual Port
275LFM @ 55 °C for Optics
250LFM 55 °C for DAC
Quad Port
325LFM @ 55 °C for Optics
300LFM @ 55 °C for DAC
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity: Maximum: 90% non-condensing relative humidity at 35 °C
LED Indicators
LINK (solid) and ACTIVITY (blinking)
LED color (green = 10Gbps)
Physical Dimensions

X722-DA2 Low profile: 167 mm x 69 mm
X722-DA4 Full height: 167 mm x 111 mm
X722-DA4 Low profile: 167 mm × 69 mm
Product Order Code

Dual Port, X722DA2, Low profile
Ouad Port, X722DA4FH, Full height
Quad Port, X722DA4G1P5, Low profile
