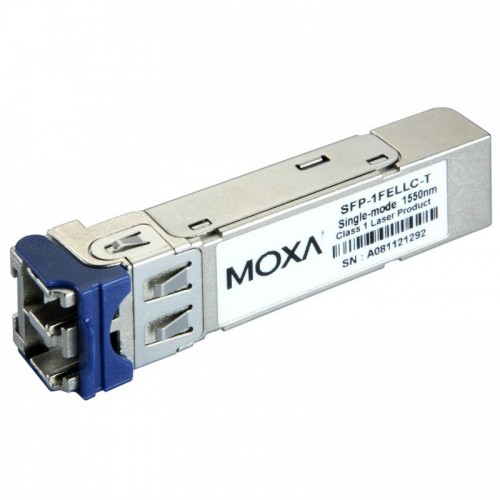

[SFP-1FELLC-T] Moxa SFP module with 1 100Base single-mode with LC connector for 80 km transmission, -40 to 85°C operating temperature

Specifications
Part Number: SFP-1FELLC-T
Product Type: SFP-1FE Series
Product: SFP module with 1 100Base single-mode with LC connector for 80 km transmission, -40 to 85°C operating temperature
Ethernet Interface
Ports: 1
Connectors: Duplex LC connector
Transceiver Type: Single-mode
Fiber Cable Type: G.652
Typical Distance: 80 km
Wavelength
Typical (nm): 1550
TX Range (nm): 1530 to 1570
RX Range (nm): 1100 to 1600
Optical Power
TX Range (dBm): 0 to -5
RX Range (dBm): -3 to -34
Link Budget (dB): 29
Dispersion Penalty (dB): 1
Power Parameters
Power Consumption: Max. 1 W
Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: CE, FCC, TÜV, UL 60950-1
Maritime: DNV-GL
