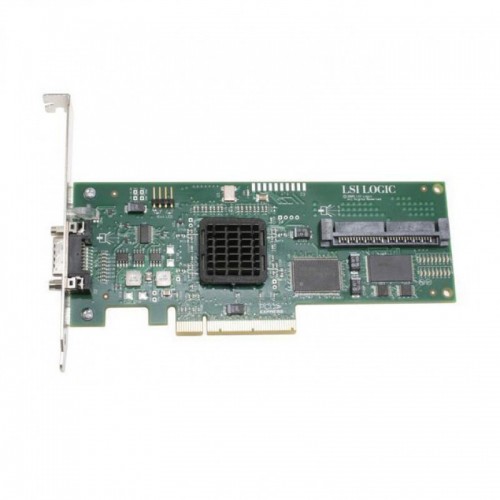

[SAS3442E-R] Broadcom LSI SAS3442E-R LSI00110 PCI Express x8 4-port Internal & 4-port External 3 Gb/s SAS Host Bus Adapter

Specifications

Part Number: LSISAS3442E-R
Product: 3Gb/s SAS Eight-Port Host Bus Adapter with Integrated RAID
PCI Bus: 8-lane, 2.5Gb/s PCI Express
PCI Modes: Bus Master DMA
PCI Card Type: 3.3 Volt Add-in Card
PCI Form Factor: 6.6” x 2.5” (MD2 Low-Profile)
PCI Power: 7.5W
Bracket: Full Height and Low Profile
PCI Certification: PCI Express 1.0a
I/O Bus: Two x4 3Gb/s SAS/SATA Ports
SAS Controller: LSISAS1068E
Connectors
Internal: One SFF8484 SAS Connector
External: One SFF8470 SAS Connector
LED Indicators:
Internal Activity per PHY
Internal Fault per PHY
Integrated RAID Levels: RAID 0, 1, 1E and 10E
Environments Operating:
0°C to 60°C, 5 to 90% Non-condensing
Storage: -45°C to 105°C, 5 to 90% Non-condensing
MTFB: >200,000 Hours
Compliances: EMC:EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/ New Zealand (AS/NZS 3548); Safety: EN60950
Operating System Support:
Microsoft® Windows® 2000, Server 2003 32-bit and 64-bit (x86 and AMD64), XP
Red Hat® Linux® RHEL 3
Novell® NetWare® 5.1 and 6.5
SuSE® Linux®/SLES
Sun SPARC Solaris 2.6 thru 2.10
