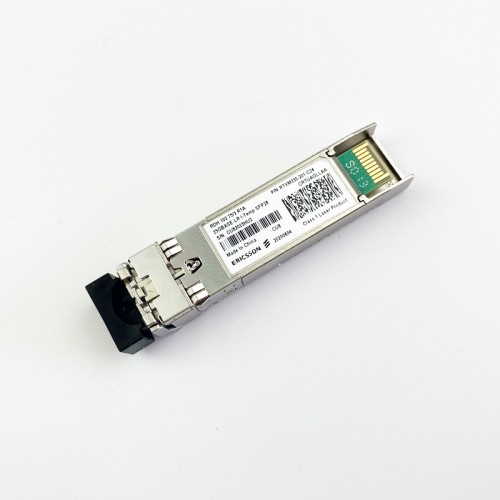

[RDH10275-3] Ericsson RDH10275/3 25GBASE-LR I-Temp 10km 1310nm SFP28 Transceiver Module

Specifications

Form Factor: SFP28
Max Data Rate: 25.78Gbps
Wavelength: 1310nm
Max Cable Distance: 10km
Connector: LC duplex
Media: SMF
Transmitter Type: DFB 1310nm
Receiver Type: PIN
DDM/DOM: Supported
Industrial Temperature Range: -40 to 85°C (-40 to 185°F)
TX Power: -4.5~2dBm
Receiver Sensitivity: <-11.4dBm
Powerbudget: 6.9dB
Receiver Overload: 2dBm
Power Consumption: <1.2W
Extinction Ratio: 2.7dB
Modulation Format: NRZ
CDR: TX & RX Built-in CDR
Transmit and Dispersion Penalty: 5dB
FEC Function: Not support
Packaging Technology: TO-CAN Packaging
EMC (Electromagnetic Compatibility): Supported
Protocols: SFF-8472, SFF-8402, SFF-8432, SFF-8431, CEI-28G-VSR
Application: 25GBASE-LR, CPRI option 10 / eCPRI
