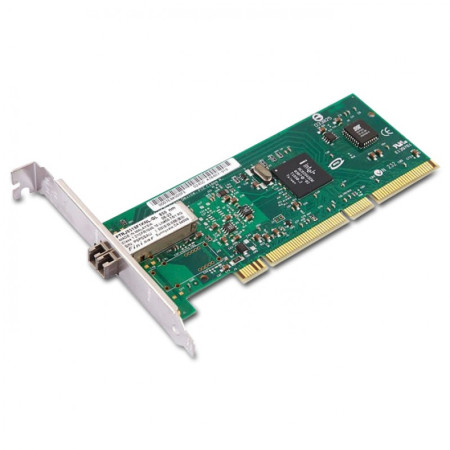

[PWLA8490MF] Intel PRO/1000 MF Server Adapter (SX), LC, 1000Full, PCI-X, 82545

Features
Support for most NOSs
Intel SingleDriver technology
Backward Compatibility with previous generations of Intel PRO/1000 Network Adapters
Supports 64 or 32 bit PCI-X or PCI 2.2 buses
Remote Management Support (WfM, RIS, SNMP/DMI)
IEEE 802.3z Compatibility
Intel 82545 Gigabit Controller
Full-height and low profile, screw-on brackets included with each adapter
Interrupt Moderation
Large Send Off-load/TCP Segmentation Off-load
Expanded Advanced Server Features
LC Connectors
1000GBASE-SX Multi-mode Fiber
1000BASE-LX

Specifications
Product Name: Intel PRO/1000 MF Server Adapter (SX)
Product Code: PWLA8490MF
Connectors: LC
IEEE standards/network topology: 1000BASE-SX
Wiring: MMF
Cable Distance: 550m at 50um, 275m at 62.5um
Data rate(s) supported per port: 1000 Mbps
Bus type: PCI/PCI-X
Bus width: 32 or 64 bit
Bus speed (MHz): 33/66/100/133
Onboard Memory: 64 KB
Interrupt levels: INTA
IEEE support: 802.3z
Hardware certifications: FCC Class A, CE
Data Transfer Mode: Bus-master DMA
Controller-processor: Intel 82545
Typical power consumption: 1A at +5V DC
Operating temperature: 0~55° C
Operating Humidity: 85% at +55° C

Physical Dimensions
Length: 16.5 cm (6.6 in)
Width: 6.4 cm (2.5 in)
Height of full-height end bracket: 12.1 cm (4.75 in)
Height of low-profile end bracket: 8.1 cm (3.2 in)

Network Operating Systems (NOS) Software Support
Microsoft Windows Server 2003 and 2000
Microsoft Windows XP 32 and 64 bit Editions
Microsoft Windows NT 4.0
Linux 2.4.x or later (32 and 64 bit)
FreeBSD 4.x or later
Novell Netware 4.11, 4.2, 5.0, 5.1, 6.0
SunSoft Solaris 7, 8
UnixWare 7.x, OpenUNIX 8(ddi8)
SCO5
