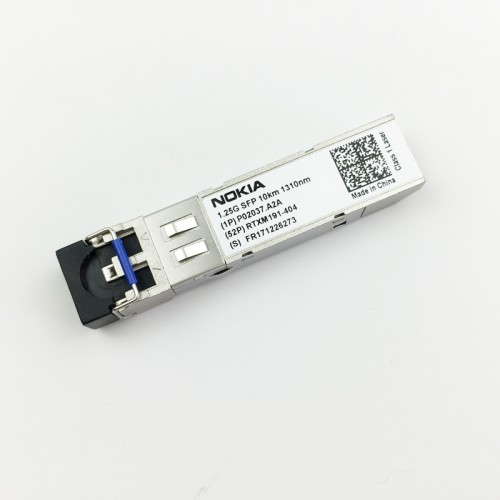

[P02037-A2A] Nokia 1.25G 10km 1310nm SFP Transceiver Moduel RTXM191-404

Features

Up to 1.25Gbps data rate
Duplex LC receptacle optical interface compliant
Single +3.3V power supply
DDM function implemented
External calibration
Hot-pluggable
Receiver Loss of Signal Output
AC coupling of PECL signals
Serial ID module on MOD(0-2)
International Class 1 laser safety certified
Transmitter disable input
Operating temperature range: -10~70℃
RoHS Compliance
Specifications

Part Number: P02037.A2A
MPN: RTXM191-404
Form Factor: SFP
Data Rate (max): 1.25 Gb/s
Connector: Duplex LC
Transmitter: FP
Receiver: PIN
Wavelength (nm): 1310
Pout: -9 ~ -3dBm
S: <-20dBm
Reach (km): 10
Operating Temperature: -10~70℃
