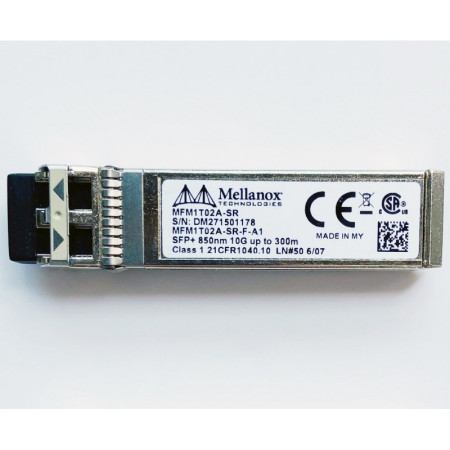

[MFM1T02A-SR] Mellanox SFP+ optical module for 10GBASE-SR

10GbE SFP+ MMF Optical Transceiver

The Mellanox MFM1T02A-SR is a pluggable, SFP+ optical transceiver, designed for use in 10GbE Ethernet systems. The transceiver operates over multi-mode (MMF) fiber, using a nominal wavelength of 850nm, and is SFF-8083 compliant.

MFM1T02A-SR has an IEEE 802.3ae compliant standard SFP+ interface on the electrical side towards the host system. The optical interface is composed of two optical channels/fibers, intended for connection of an MMF cable via a standard LC connectors.

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability

Highlights
Up to 10.3125Gb/s data rate
SFF-8083 compliant
IEEE 802.3ae 10GBASE-SR compliant
1W maximum power consumption
3.3V power supply
BER better than 1E-15
Operating case temperature of 0-70°C
Hot pluggable
Class 1 laser safety
Up to 300m link length on OM3 multimode fiber at 10Gb/s
Up to 400m link length on OM4 multimode fiber at 10Gb/s
RoHS compliant
SFF-8083 compliant management interface
SFF-8472 compliant digital diagnostic monitoring (DDM)

Specifications
Configuration: 10GbE SR
Configuration: SFP+
Application: 1x 10G-NRZ Serial
Connector: 2-fiber duplex LC
Max Reach: 400m
Wavelength: 850nm multi-mode
Part Number: MFM1T02A-SR
