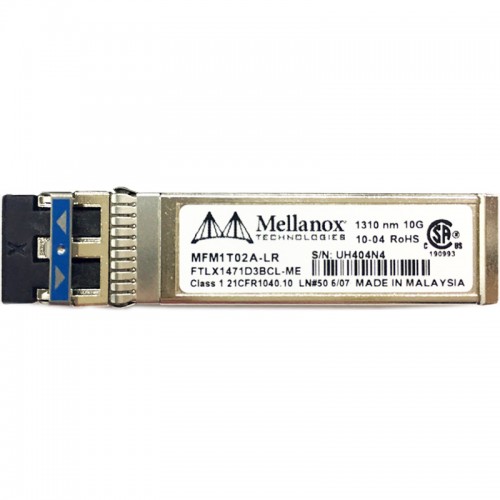

[MFM1T02A-LR] Mellanox SFP+ optical module for 10GBASE-LR

10GbE SFP+ 10GBASE-LR Optical Transceiver

The Mellanox 10.3125Gb/s SFP+ module contains one fiber optic transceiver, operating at data rates of up to 10.3125Gb/s.

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability

Highlights
10.3125Gb/s data rate
1W maximum power consumption
SFF-8431 and SFF-8432 compliant
IEEE 802.3ae 10GBASE-LR compliant
Operating case temperature of 0°C to 70°C
3.3V power supply
BER lower than 1E-15
Hot pluggable
Class 1 laser safety
Maximum link length of 10km
Duplex LC connector
RoHS compliant

Specifications
Configuration: 10GbE LR
Configuration: SFP+
Application: 1x 10G-NRZ Serial
Connector: 2-fiber duplex LC
Max Reach: 10km
Wavelength: 1310nm single-mode
Part Number: MFM1T02A-LR
