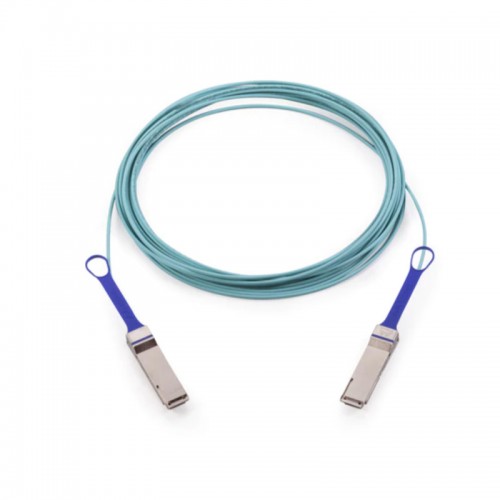

[MFA1A00-C010] Mellanox Active fiber cable, ETH 100GbE, 100Gb/s, QSFP, LSZH, 10m

Mellanox 100Gb/s QSFP28 MMF Active Optical Cables

NVIDIA Mellanox MFA1A00-Cxxx are QSFP28 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cables designed for use in 100Gb/s Ethernet systems.

MFA1A00-Cxxx AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.

MFA1A00-Cxxx offers selectable retiming per lane for both its optical transmitters and receivers for the 25Gb/s rate, but the AOC also supports lower bit rates without retiming. The transmitters have programmable input equalizers and input squelch function, while the receivers have programmable output amplitude and pre-emphasis.

These unique-quality active-fiber cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

Highlights
Up to 100Gb/s data rate
Programmable Rx output amplitude and pre-emphasis
Programmable Tx input equalizer
Selectable retiming
SFF-8665 compliant QSFP28 port
Single 3.3V power supply
2.2W power dissipation (typ, each end, with retiming)
BER better than 1E-15
Up to 100m length
Hot pluggable
RoHS compliant
SFF-8636 compliant I2C management interface
