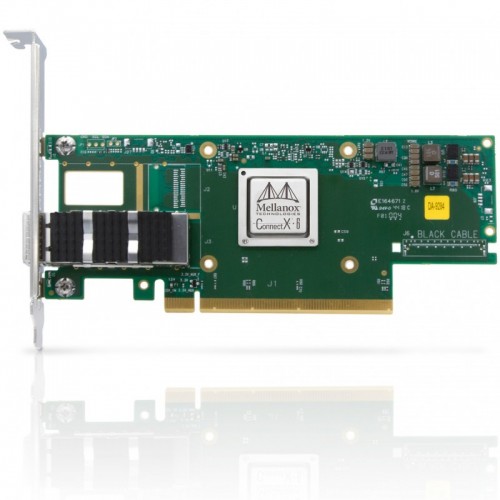

[MCX653105A-EFAT] Mellanox ConnectX-6 VPI adapter card, 100Gb/s (HDR100, EDR IB and 100GbE), single-port QSFP56, PCIe3.0/4.0 Socket Direct 2x8 in a row, tall bracket

NVIDIA MCX653105A-EFAT ConnectX-6 VPI Adapter Card HDR100 EDR InfiniBand and 100GbE Single-Port QSFP56 PCIe3.0/4.0 Socket Direct 2x8 in a Row Tall Bracket

ConnectX-6 VPI Card HDR100 EDR InfiniBand and 100GbE Ethernet Adapter Card

ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing a single port of HDR100 EDR InfiniBand and 100GbE Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability.

ConnectX-6 VPI series supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.

Features
Up to HDR100 EDR InfiniBand and 100GbE Ethernet connectivity per port
Max bandwidth of 200Gb/s
Up to 215 million messages/sec
Sub 0.6usec latency
Block-level XTS-AES mode hardware encryption
FIPS capable
Advanced storage capabilities including block-level encryption and checksum offloads
Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports
Best-in-class packet pacing with sub-nanosecond accuracy
PCIe Gen 3.0 and Gen 4.0 support
RoHS compliant
ODCC compatible

Benefits
Industry-leading throughput, low CPU utilization and high message rate
Highest performance and most intelligent fabric for compute and storage infrastructures
Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)
Host Chaining technology for economical rack design
Smart interconnect for x86, Power, Arm, GPU and FPGA-based compute and storage platforms
Flexible programmable pipeline for new network flows
Efficient service chaining enablement
Increased I/O consolidation efficiencies, reducing data center costs & complexity
