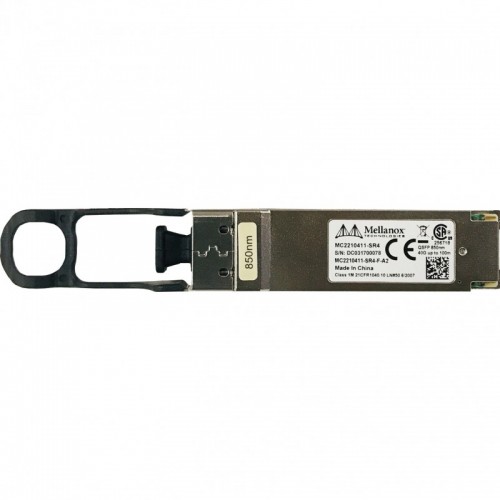

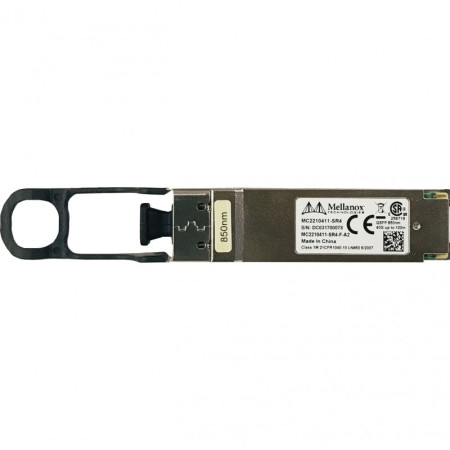

[MC2210411-SR4] Mellanox optical module, 40Gb/s, QSFP, MPO, 850nm, up to 100m

40Gb/s QSFP+ MMF Optical Transceiver

Mellanox MC2210411-SR4 is a 4-channel, pluggable, QSFP+, VCSEL-based (Vertical Cavity Surface Emitting Laser) optical transceiver designed for use in 40Gb/s networks operating at 4x10.3125Gb/s. This transceiver incorporates Mellanox integrated circuit technology, which combines high performance at low power. The transceiver operates over parallel multi-mode fiber (MMF), using a nominal wavelength of 850nm, and is SFF-8436 compliant.

MC2210411-SR4 transceiver has a standard QSFP+ connector on the electrical side towards the host system for power, control/monitoring and high-speed data. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel MMF cable via a standard MPO connector. The transceiver can operate at 10.3125Gb/s without retiming.

The transceiver provides digital diagnostic monitoring of supply voltage, temperature, transmit/receive power, and VCSEL bias.

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

Highlights
40Gb/s Ethernet and FDR10
Programmable Tx input equalizer
Programmable Rx output amplitude
Programmable Rx output emphasis
SFF-8436 compliant QSFP+
Single 3.3V supply
QSFP+ power class 1
BER better than 1E-15
Class 1 laser safety
Up to 100m
Digital diagnostic monitoring (DDM)
Hot pluggable
RoHS compliant
IEEE 802.3 40GBASE-SR4 compliant
SFF-8636 compliant I2C management interface

Specifications
Configuration: 40GbE SR4
Configuration: QSFP+
Application: 4x 10G-NRZ Parallel
Connector: 8-fiber, MPO-12
Max Reach: 100m
Wavelength: 850nm multi-mode
Part Number: MC2210411-SR4
