[LSICVM01] Broadcom LSI CVM01 LSI00297 CacheVault Accessory Kit for 9266 & 9271 Series

Broadcom LSI CVM01 LSI00297 CacheVault Accessory Kit for 9266 & 9271 Series

This Avago Technologies CacheVault™ Module 01 (LSICVM01) Kit contains a MegaRAID® CacheVault Flash Module 02 (CVFM02), a MegaRAID CacheVault Power Module 02 (CVPM02), a clip, and a cable.

The CVFM02 module is a USB flash module that provides cache offload capability to protect cached data in case of host power loss or server failure. The remote CVPM02 module is a super-capacitor pack that provides the power to off-load cached data from the DRAM to the nonvolatile FLASH memory on the CVFM02 module if a power failure or outage occurs. Cached data is restored from the CVFM module to DRAM the next time the RAID controller is powered. Cached data can then be written to the storage devices.

To install the kit, you attach the CVFM02 module directly to a RAID controller, insert the CVPM02 module into the clip on a BBU-BRACKET-05 remote mount board (sold separately), and then connect the CVFM02 module by cable to the remote CVPM02 module. Next, install the RAID controller and the remote mount board in PCI Express® (PCIe®) slots in the system.

Compatibility

The following MegaRAID SAS RAID controllers support the LSICVM01 kit:

MegaRAID SAS 9266-4i
MegaRAID SAS 9266-8i
MegaRAID SAS 9271-4i
MegaRAID SAS 9271-8i
MegaRAID SAS 9271-8iCC
Contents In the Box

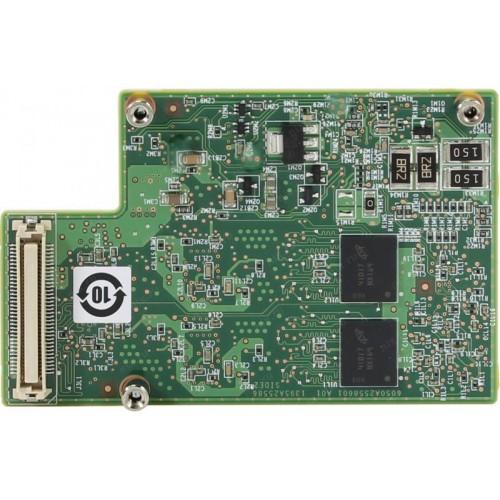

CacheVault Flash Module (CVFM02),
CacheVault Power Module (CVPM02)
with 3” cable, 24” remote cable extender, CVPM clip
For more specifications of this Broadcom LSICVM01, please visit Broadcom website:

https://docs.broadcom.com/doc/12352397
