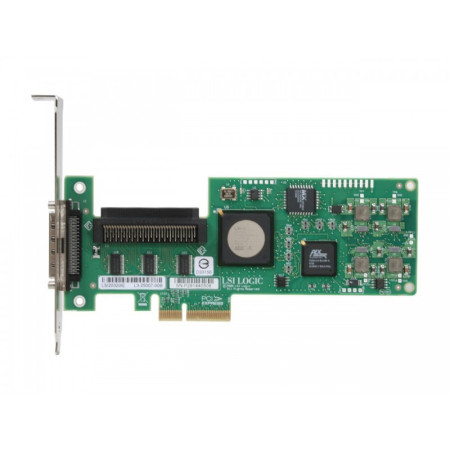

[LSI20320IE] Broadcom LSI LSI20320IE LSI00154 PCI Express x4 LSI53C1020A Ultra320 SCSI Single-Channel HBA

Specifications

Part Number: LSI20320IE
Product: PCI Express Ultra320 SCSI Single-Channel HBA
PCI Bus: PCI Express x4 Lanes
PCI Modes: Bus Master DMA
PCI Express Card Type: x4
PCI Express Voltage: +12V ±10%
PCI Express Form Factor: 6.6” x 2.53” (MD2 Low-Profile)
PCI Express Power: 10W (without providing termination power)
Bracket: Full Height and Optional Low-Profile Bracket
PCI Certification: PCI Express 1.0a
SCSI Bus: Wide Ultra320, LVD (Low Voltage Differential) and Wide Ultra SE (Single-Ended)
SAS Processor: LSI53C1020A
Connectors
Internal: Internal: 68-pin HD
External: 68-pin VHDCI
Termination: Universal (LVD/SE) termination per channel
Termination Power: Self-resetting 1.5A fuse per channel
LED Indicators: 4-pin header for off-board LEDs
Flash Memory: 512k x8 Flash EEPROM
Max Number of Physical Devices: 15
Environments Operating:
0°C to 55°C, 5 to 90% Non-condensing
Storage: -45°C to 105°C, 5 to 90% Non-condensing
MTFB: >200,000 Hours
Compliances: EMC:EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/ New Zealand (AS/NZS 3548); Safety: EN60950
Operating System Support:
Microsoft® Windows® NT4.0 SP4 and above, 2000, 200SP1, XP and Server 2003
Red Hat® Linux® 2.2 and 2.4 Kernels
Novell® NetWare® 4.11, 4.2, 5x
UnixWare® 2.12 and 7x
SCO Unix 5.x
Solaris x86 Version 8, 9 and 10
Sun Solaris Version 2.6 and later, Open Boot PROM Version 3.0 or greater
