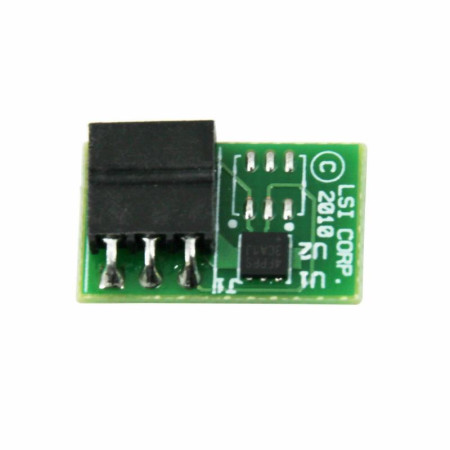

[LSI00290] Broadcom LSI LSI00290 RAID CacheCade Pro 2.0 Software Physical Key for 9271 9270 Series Card

Broadcom LSI LSI00290 RAID CacheCade Pro 2.0 Software Physical Key for 9271 9270 Series Card

Product Description

CacheCade Pro 2.0 Physical Software Key LSI00290 for MegaRAID 9266-8i, 9270-8i, 9271 -8i/4I, 9285(cv)-8e,9361-4i/8i, 9380 -8e

Features

Unlock substantial performance gains from HDD arrays with minimal SSD investment
Assign and manage the SSD pool with intuitive management software
Eliminate or reduce wasted capacity caused by short-stroking hard disk drives
Extend HDD longevity by reducing wear from the most commonly accessed data
Specifications

Physical Key MPN & Ordering Part Number: L5-25188-04 LSI00290
Supported Operating Systems: All operating systems supported by MegaRAID controller cards
Supported SSDs: View the Compatibility Report for a list of SSDs compatible with MegaRAID CacheCade Pro
Compatible with: MegaRAID SAS 9265-8i, 9266-4i, 9266-8i, 9270-8i, 9271-4i,9271-8i, 9285-8e, 9285CV-8e, 9286-8e, 9286CV-8e, 9361-4i, 9361-8i, 9380-8e
Maximum Number of SSC virtual disks supported per Controller: Up to 64 (total number of HDD virtual disks plus CacheCade virtual disks must not exceed 64)
Maximum CacheCade Capacity per Controller: up to 2TB (2TB supported only with Controllers with 2GB DRAM Cache equipped.)
