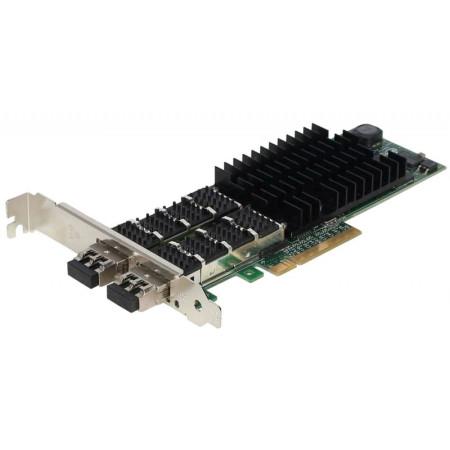

Intel [EXPX9502AFXSR] Intel 10 Gigabit XF SR Dual Port Server Adapter, Dual Port, LC MMF, 10GbE, PCIe, 82598EB EXPX9502AFXSR.. Product #: EXPX9502AFXSR based on 0 reviews

[EXPX9502AFXSR] Intel 10 Gigabit XF SR Dual Port Server Adapter, Dual Port, LC MMF, 10GbE, PCIe, 82598EB

MANUFACTURER: Intel
P/N (รหัสสินค้า): EXPX9502AFXSR

รับประกันสินค้า 5 ปี:

สินค้ารับประกัน 5 ปี

ผู้รับเหมาและโครงการต่างๆ ราคาพิเศษ SI ราคา พิเศษ

- +

Features
Intel 82598EB 10 Gigabit Ethernet Controller
Low profile
Load balancing on multiple CPUs
Intel I/O Acceleration Technology (Intel I/OAT)
iSCSI remote boot support
MSI-X support
Virtual Machine Device queues1 (VMDq)
Low latency
Optimized queues: 32 Transmit (Tx) and 64 Receive (Rx) per port
Compatible with x4, x8, and x16 standard and low-profile PCI Express slots
Support for most Network Operating Systems (NOS)
Remote management support
Multi-mode fiber 62.5/50 µm
RoHS compliant, lead-free technology
Intel PROSet Utility for Microsoft Windows Device Manager
Intel backing

Specifications
Product Name: Intel 10 Gigabit XF SR Dual Port Server Adapter
Product Code: EXPX9502AFXSR
Market Segment: Server
Bracket Height: Low-Profile (LP) / Full-Height (FH)
Connectors: IEEE standards/network topology 10GBASE-SR two LC fiberoptic connector
Cabling: Multi-mode fiber (62.5 µm or 50 µm)
Data rate(s) supported per port: 10 Gigabit
Bus type: PCI Express 2.0
Bus width: x8 lane PCI Express, operable in x4, x8, x16 slots
Bus speed (x8, encoded rate): 20 Gbps uni-directional; 40 Gbps bi-directional
Interrupt levels: INTA, MSI, MSI-X
Hardware certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
Controller-processor: Intel 82598EB
Typical power consumption: 14W (1.17A @ 12V)
Operating temperature: 0° C to 55° C (32° F to 131° F) with 150 LFM forced-air flow (linear feet per minute)
Storage temperature: -40° C to 70° C (-40° F to 158° F)
Storage humidity: 90% non-condensing relative humidity at 35° C
LEDs: 2, LINK (solid), and ACTIVITY (blinking)
Physical Dimensions
Length: 16.74 cm (6.59 in)
Width: 6.89 cm (2.71 in)
Height of end bracket
PCI Express standard, 12 cm (4.725 in);
PCI Express low-profile, 7.92 cm (3.12 in)
