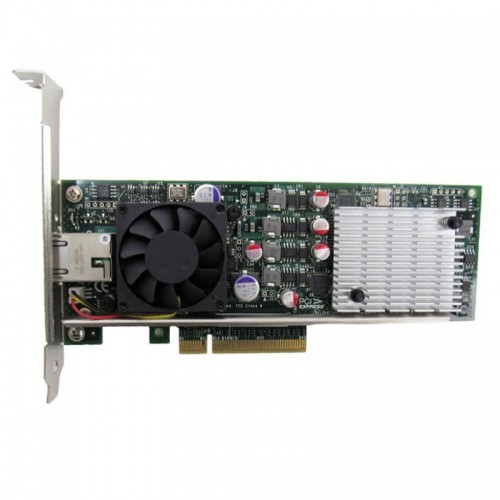

[EXPX9501AT] Intel 10 Gigabit AT Server Adapter, RJ45, 10GbE, PCIe, 82598

Features
Intel 82598EB 10 Gigabit Ethernet Controller
Low profile
Load balancing on multiple CPUs
Intel I/O Acceleration Technology (Intel I/OAT)
iSCSI remote boot support
MSI-X support
Virtual Machine Device queues1 (VMDq)
Low latency
Optimized queues: 32 Transmit (Tx) and 64 Receive (Rx) per port
Network packet handling without waiting or buffer overflow
Support for most Network Operating Systems (NOS)
Compatible with x8 and x16 standard and low-profile PCI Express* slots
Remote management support
RJ-45 connections over category-6A cabling
RoHS compliant, lead-free technology
Intel PROSet Utility for Microsoft Windows Device Manager
Intel backing

Specifications
Product Name: Intel 10 Gigabit AT Server Adapter
Product Code: EXPX9501AT
Market Segment: Server
Bracket Height: Low-Profile (LP) / Full-Height (FH)
Connectors: RJ-45 Copper
Cabling: Category-6A
Data rate(s) supported per port: 1 Gigabit and 10 Gigabit
Bus type: PCI Express 2.0 (2.5 Gtps)
Bus width: x8 lane PCI Express, operable in x8 and x16 slots
Bus speed (x8, encoded rate): 20 Gbps uni-directional; 40 Gbps bi-directional
Interrupt levels: INTA, MSI, MSI-X
Hardware certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
Controller-processor: Intel 82598EB
Typical power consumption: 24 W 100LFM
Operating temperature: 0° C to 55° C (32° F to 131° F)
Storage temperature: -40° C to 70° C (-40° F to 158° F)
Storage humidity: 90% non-condensing relative humidity at 35° C
LED Indicators: LINK (solid) and ACTIVITY (blinking)
Physical Dimensions
Length: 16.74 cm (6.59 in)
Width: 6.89 cm (2.71 in)
Height of end bracket
PCI Express standard, 12 cm (4.725 in)
PCI Express low-profile, 7.92 cm (3.12 in)
