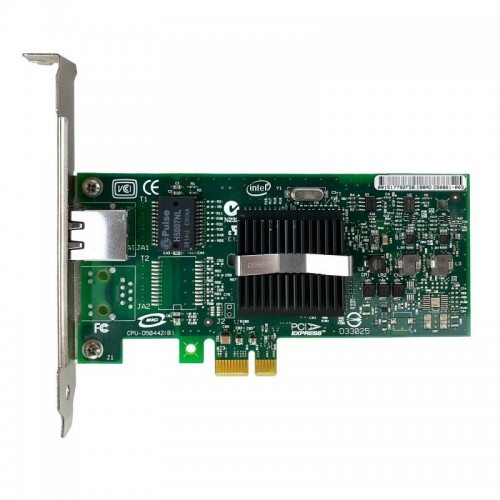

[EXPI9400PT] Intel PRO/1000 PT Server Adapter, 1 RJ45, 10/100/1000, PCIe, 82572Gl

Features
Intel 82572GI Gigabit Controller
Load balancing on multiple CPUs
Interrupt moderation
Compatible with x1, x4, x8, and x16 full-height and low-profile PCI Express* slots
Support for most network operating systems (NOS)
Remote Management Support
Category-5 unshielded twisted pair (UTP), 4-pair cabling
RoHS compliant, lead-free technology
Intel PROSet Utility for Microsoft* Device Manager
Advanced cable diagnostics
Intel backing

Specifications
Product Name: Intel PRO/1000 PT Server Adapter
Product Code: EXPI9400PT
Connectors: RJ-45
IEEE standards/network topology: 10BASE-T, 100BASE-TX, 1000BASE-T
Wiring: Category-5, UTP, 4-pair
Cable distance: 100 m in Category-5 for 100/1000 Mbps; Category-3 for 10 Mbps
Data rate(s) supporter per port: 10, 100, and 1000 Mbps
Bus type: PCI Express 1.0a
Bus width: x1 Lane PCI Express, operable in x1, x4,x8, x16 slots
Bus speed (x1, encoded rate): 2.5 Gbps uni-directional; 5 Gbps bi-directional
EEPROM-SPI and single EEPROM support: Yes
Interrupt levels: INTA
IEEE support: 802.3ab*
Hardware certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
Controller-processor: Intel® 82572GI
Typical power consumption: 3.3 W (3.3 V @ 1 A)
Operating temperature: 0-55° C
LEDs: 1 (1/port, link and speed) solid and blinking

Physical Dimensions
Length: 12.9 cm (5.1 in)
Width (standard bracket): 2.2 cm (0.85 in)
Width (low-profile bracket): 1.8 cm (0.725 in)
Height of full-height end bracket: 12.0 cm (4.725 in)
Height of low-profile end bracket: 7.9 cm (3.1 in)

Network Operating Systems (NOS) Software Support
Microsoft Windows* Server 2003, Enterprise, Datacenter (32- & 64-bit)
Microsoft Windows 2000
Red Hat Linux* 2.4x or later (32- and 64-bit)
FreeBSD 4.x or later
Novell Netware* 5.x, 6.x
Sun Solaris* x86, OS 8 and later
SCO Open Server 5, OpenUNIX 8
