Intel [EXPI9300PT] Intel PRO/1000 PT Desktop Adapter, RJ45, 10/100/1000, PCIe, 82572El EXPI9300PT.. Product #: EXPI9300PT based on 0 reviews

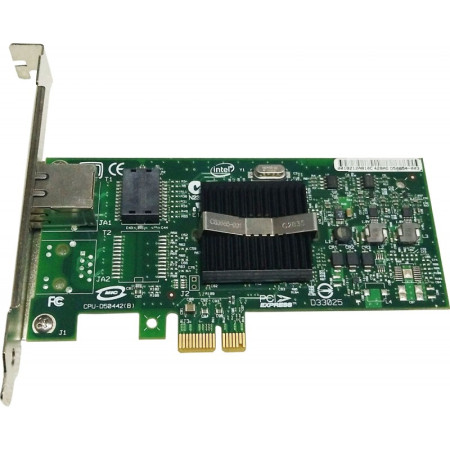

[EXPI9300PT] Intel PRO/1000 PT Desktop Adapter, RJ45, 10/100/1000, PCIe, 82572El

MANUFACTURER: Intel
P/N (รหัสสินค้า): EXPI9300PT

รับประกันสินค้า 5 ปี:

สินค้ารับประกัน 5 ปี

ผู้รับเหมาและโครงการต่างๆ ราคาพิเศษ SI ราคา พิเศษ

- +

Features
Intel 82572EI Gigabit Controller
Interrupt moderation
PCI Express* x1 slot compatible
Compatible with Fast Ethernet and Ethernet
10/100/1000 Mbps self-configuring
Support for most network operating systems (NOS)
Category-5 unshielded twisted pair (UTP), 4-pair cabling
RoHS compliant, lead-free technology
Advanced configuration and power interface (ACPI), Wake on LAN* (WoL), Preboot Execution Environment (PXE)
Remote management support
Intel PROSet Utility for Windows
Advanced cable diagnostics
Intel backing

Specifications
Product Name: Intel PRO/1000 PT Desktop Adapter
Product Code: EXPI9300PT
Connectors: RJ-45
IEEE standards/network topology: 10/100/1000BASE-T
Wiring: Category-5 UTP, 4-pair
Cable Distance: 100 m Category-5 for 1000/100 Mbps; Category-3 for 10 Mbps
Data rate(s) supported per port: 10, 100, and 1000 Mbps
Bus type: PCI Express 1.0a
Bus width: x1 lane PCI Express operable in x1, x4, x8, x16 slots
Bus speed (x1, encoded rate): 2.5 Gbps uni-directional; 5 Gbps bi-directional
EEPROM-SPI and single EEPROM support: Yes
Interrupt levels: INTA
IEEE support: 802.3z*
Hardware certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
Controller-processor: Intel 82572EI
Typical power consumption: 3.3 W (3.3 V @ 1 A)
Operating temperature: 0-55° C
LEDs: 2 (1/port, link and speed) solid and blinking

Physical Dimensions
Length: 12.9 cm (5.1 in)
Width (standard bracket): 2.2 cm (0.85 in)
Width (low-profile bracket): 1.8 cm (0.725 in)
Height of full-height end bracket: 12.0 cm (4.725 in)
Height of low-profile end bracket: 7.9 cm (3.1 in)

Network Operating Systems (NOS) Software Support
Microsoft Windows* Professional, XP, 2000
Red Hat Linux* 2.4x or later (32- and 64-bit)
Novell Netware* 5.x, 6.x
