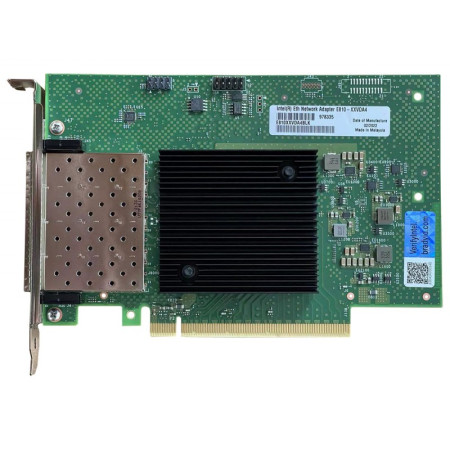

[E810-XXVDA4] Intel E810 25GbE Quad SFP28 Port Ethernet Network Adapter

Essentials
Product P/N: E810-XXVDA4
Product Collection: 800 Series Network Adapters (up to 100GbE)
Status: Launched
Launch Date: Q3'20
Vertical Segment: Server
Cable Medium: Copper
Cabling Type: SFP28 ports - DAC, Optics, and AOC's
Bracket Height: Full Height
Product Order Code: E810XXVDA4, E810XXVDA4BLK
Dimension: 6.58 in x 4.37 in (167 mm x 111 mm)
RoHS-compliant: Product is compliant with EU RoHS Directive 2 2011/65/EU (Directive 2011/65/EU) and its amendments (e.g. 2015/863/EU)

Networking Specifications
Port Configuration: Quad
Data Rate Per Port: 25/10/1GbE
Intel® Virtualization Technology for Connectivity (VT-c): Yes
Speed & Slot Width: 16 GT/s x16 lanes
Controller: Intel Ethernet Controller E810

Package Specifications
System Interface Type: PCIe 4.0 (16 GT/s)

Intel® Virtualization Technology for Connectivity
On-chip QoS and Traffic Management: Yes
Flexible Port Partitioning: Yes
Virtual Machine Device Queues (VMDq): Yes
PCI-SIG* SR-IOV Capable: Yes

Advanced Technologies
iWARP/RDMA: Yes
RoCEv2/RDMA: Yes
Intel® Data Direct I/O Technology: Yes
Intelligent Offloads: Yes
Storage Over Ethernet: iSCSI, NFS

Key Features
Quad Port SFP28
Dynamic Device Personalization (DDP)
PCI Express (PCIe) 4.0 x16
Supports both RDMA iWARP and RoCEv2
Application Device Queues (ADQ)
IEEE 1588 Precision Time Protocol (PTP)
