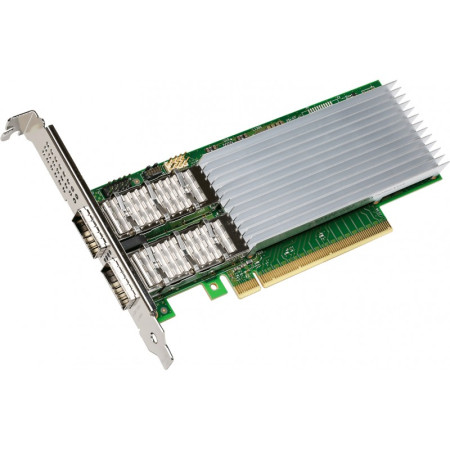

[E810-CQDA2] Intel E810 100GbE Dual QSFP28 Port Ethernet Network Adapter

Essentials
Product P/N: E810-CQDA2
Product Collection: 800 Series Network Adapters (up to 100GbE)
Status: Launched
Launch Date: Q3'20
Vertical Segment: Server
Cabling Type: QSFP28 port - DAC, Optics, and AOC's
Bracket Height: Low Profile and Full Height
Product Order Code: E810CQDA2, E810CQDA2BLK
Dimension: 167 mm x 69 mm
RoHS-compliant: Product is compliant with EU RoHS Directive 2 2011/65/EU (Directive 2011/65/EU) and its amendments (e.g. 2015/863/EU)

Networking Specifications
Port Configuration: Dual
Data Rate Per Port: 100/50/25/10/1GbE
Intel® Virtualization Technology for Connectivity (VT-c): Yes
Speed & Slot Width: 16 GT/s x 16 lanes
Controller: Intel Ethernet Controller E810 E810-CAM2

Package Specifications
System Interface Type: PCIe 4.0 x16(16 GT/s)

Intel® Virtualization Technology for Connectivity
On-chip QoS and Traffic Management: Yes
Flexible Port Partitioning: Yes
Virtual Machine Device Queues (VMDq): Yes
PCI-SIG* SR-IOV Capable: Yes

Advanced Technologies
iWARP/RDMA: Yes
RoCEv2/RDMA: Yes
Intel® Data Direct I/O Technology: Yes
Intelligent Offloads: Yes
Storage Over Ethernet: iSCSI, NFS

Key Features
Single and Dual-Port QSFP28
Application Device Queues (ADQ)
PCI Express (PCIe) 4.0 x16
Dynamic Device Personalization (DDP)
Ethernet Port Configuration Tool (EPCT)
Supports both RDMA iWARP and RoCEv2
