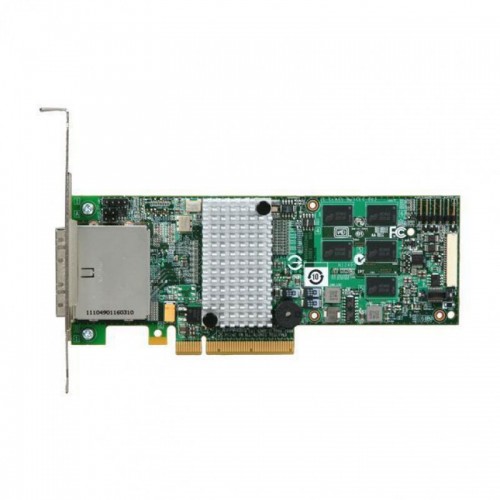

[9750-8e] Broadcom 3ware 9750-8e LSI00243 PCIe 2.0 x8 8-port External 6Gb/s SATA+SAS RAID Controller Card

Specifications

Part Number: 3ware® SAS 9750-8e
Product: Eight-Port 6Gb/s PCI Express® SATA+SAS RAID Controller Card
Solution Provided: Eight-port external SATA+SAS solution for high-density servers and workstations using up to 127 drives with the flexibility to use both SATA and SAS hard drives and solid state drives (SSDs)
Physical Dimensions: Low profile (6.6” X 2.536”)
Connectors: Two Mini-SAS SFF8088 external connectors
Device Support: Up to 127 SATA and/or SAS hard drives and SSDs
Host Bus Type: x8 lane PCI Express 2.0 Compliant
Data Transfer Rates: Up to 6Gb/s per port
I/O Processor / SAS Controller: LSISAS2108 RAID-on-Chip (ROC)
Cache Memory: 512MB 800MHz DDR II SDRAM
Battery Backup Unit: LSIiBBU07, an intelligent battery backup module option that directly connects to the controller
Key RAID Data Protection Features:
RAID levels 0, 1, 5, 6,10, 50 and Single Disk
Rapid RAID Recovery
StreamFusion+
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during array rebuild or reconstruction
Single controller Multipathing (failover)
Load Balancing
Variable stripe size support
Fast initialization for quick array setup
Background Task Activity Policies
Multiple logical unit sizes and RAID levels on one card
Bootable array support for greater fault tolerance of your OS
SMTP support for email notification
SNMP support
Emergency Flash Recovery protects against failed
firmware upgrade
Up to 32 active units support
up to 32 drives per unit support
Support for greater than 2TB volumes
S.M.A.R.T support
Staggered drive spin-up support
Drive insertion and removal notification
Global Hot Spare – Automatic rebuild
Enclosure management for SES 2.0 via I2C or in-band signaling
Optional Battery Backup with StorSave BBU
Operating Temperature: Maximum ambient: 60°C (44.5°C w/iBBU)
Operating Voltage: 3.3V and 12V
Warranty: 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management: 3ware® Disk Manager 2 (3DM®2); Command Line Utility (CLI); 3ware BIOS Manager (3BM); SNMP support
OS Support: Extensive support includes Microsoft® Windows Vista®, Windows 7®, Windows Server® 2003/2008, Red Hat Linux®, SuSE Linux®, Fedora Core Linux®, FreeBSD®, Mac® OS X, VMware® ESXTM and ESXTMi, OpenSolarisTM, and more. Visit the LSI download center for the most complete list of supported operating systems: lsi.com/support
Ordering Information: 3ware SAS 9750-8e Single Pack P/N: LSI00252; 3ware SAS 9750-8e4e Kit P/N: LSI00254
