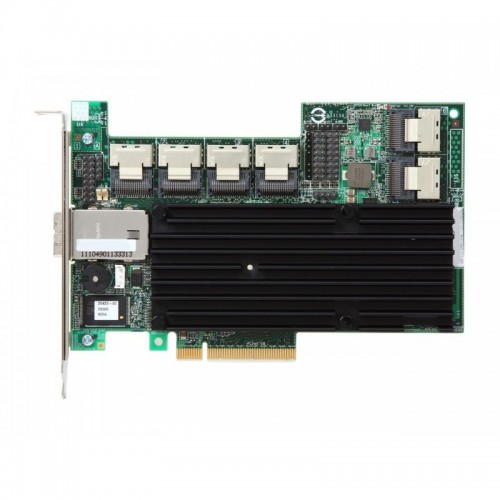

[9750-24i4e] Broadcom 3ware 9750-24i4e LSI00253 PCIe 2.0 x8 24-port Internal / 4-port External 6Gb/s SATA+SAS RAID Controller

Specifications

Part Number: 3ware® SAS 9750-24i4e
Product: Twenty-four Port Internal / Four Port External 6Gb/s PCI Express SATA+SAS RAID Controller
Solution Provided: Twenty-four port internal/four port external SATA+SAS solution for high-density servers and workstations using up to 127 drives with the flexibility to use both SATA and SAS hard drives and solid state drives (SSDs)
Physical Dimensions: Full height (6.6” x 4.376”)
Connectors:
Six Mini-SAS SFF8087 internal connectors
One Mini-SAS SFF8088 external connector
Device Support: Up to 127 SATA and/or SAS hard drives and SSDs
Host Bus Type: x8 lane PCI Express 2.0 Compliant
Data Transfer Rates: Up to 6Gb/s per port
I/O Processor / SAS Controller: LSISAS2108 RAID-on-Chip (ROC)
Cache Memory: 512MB 800MHz DDR II SDRAM
Battery Backup Unit: LSIiBBU07, an intelligent battery backup module option that remotely connects to the controller
Key RAID Data Protection Features:
RAID levels 0, 1, 5, 6,10, 50 and Single Disk
Rapid RAID Recovery
StreamFusion+
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during array rebuild or reconstruction
Single controller Multipathing (failover)
Load Balancing
Variable stripe size support
Fast initialization for quick array setup
Background Task Activity Policies
Multiple logical unit sizes and RAID levels on one card
Bootable array support for greater fault tolerance of your OS
SMTP support for email notification
SNMP support
Emergency Flash Recovery protects against failed
firmware upgrade
Up to 32 active units support
up to 32 drives per unit support
Support for greater than 2TB volumes
S.M.A.R.T support
Staggered drive spin-up support
Drive insertion and removal notification
Global Hot Spare – Automatic rebuild
Enclosure management for SES 2.0 via I2C or in-band signaling
Optional Battery Backup with StorSave BBU
Operating Temperature: Maximum ambient: 60°C (44.5°C w/iBBU) with a minimum airflow of 200 LFPM
Operating Voltage: +3.3V, +12V
Warranty: 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management: 3ware® Disk Manager 2 (3DM®2); Command Line Utility (CLI); 3ware BIOS Manager (3BM); SNMP support
OS Support: Extensive support includes Microsoft® Windows Vista®, Windows 7®, Windows Server® 2003/2008, Red Hat Linux®, SuSE Linux®, Fedora Core Linux®, FreeBSD®, Mac® OS X, VMware® ESXTM and ESXTMi, OpenSolarisTM, and more. Visit the LSI download center for the most complete list of supported operating systems: lsi.com/support
Ordering Information: 3ware SAS 9750-24i4e Single Pack P/N: LSI00251; 3ware SAS 9750-24i4e Kit P/N: LSI00253
