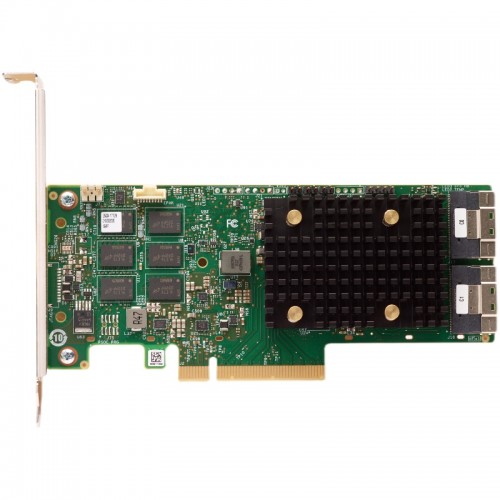

[9560-16i] Broadcom LSI 9560-16i 05-50077-00 PCIe 4.0 x8 SAS3916 16 Internal Ports MegaRAID Tri-Mode RAID Controller Card

Specifications
Product: MegaRAID 9560-16i
Manufacturer Part #: 05-50077-00
Lifecycle: Active
Distributor Inventory: No
Cache Memory: 8GB
Cache Protection: CacheVault CVPM05
Data Transfer Rates: 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant
Devices Supported: SAS/SATA: 240, NVMe: 24
Generation: 12 Gb/s
Host Bus Type: x8 lane PCI Express 4.0
I/O Processor / SAS Controller: SAS3916 12Gb/s SAS Tri-Mode RAID-on-Chip (ROC)
Internal Connectors: 2 x8 SFF-8654 (SlimSAS)
Internal Ports: 16
Management Software: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF: >3,000,000 hours at 40° C
Operating Temperature°C: 0°C to 55°C
OS: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions: Low profile 6.127” x 2.712”
Regulatory Certifications: Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
