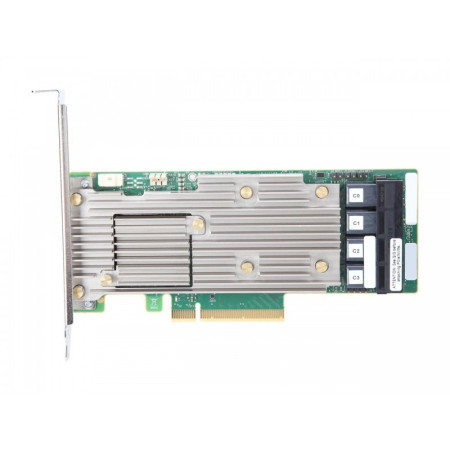

[9460-16i] Broadcom LSI 9460-16i 05-50011-00 PCIe 3.1 x8 SAS3516 16 Internal Ports MegaRAID Tri-Mode Storage Adapter

Specifications
Product: 9460-16i
Manufacturer Part #: 05-50011-00
Ports: 16 internal
Connectors: Four (x4) SFF-8643
Storage Interface Support: SAS, SATA, PCIe (NVMe)
Max PCIe (NVMe) Direct Attach Devices: Four x4, Eight x2
Max Devices Per Controller: SAS/SATA: 240; NVMe: 24
Cache Memory: 4 GB 2133MHz DDR4 SDRAM
I/O Processor / SAS Controller: SAS3516
Host Bus Type: PCIe 3.1 x8
Cache Protection: CacheVault CVPM05
Physical Dimensions: 6.127″ x 2.712″(155.65 mm x 68.90 mm)
Typical Power: 17.02W
Airflow: 250LFM at 55°C
Operating Conditions
Operating: 0°C to 55°C 20 to 80% non-condensing
Storage: -45°C to 105°C 5 to 95% non-condensing
MTBF (Calculated): >3,000,000 hours at 40°C
Operating Voltage: +12V +/-8%; 3.3V +/-9%
Hardware Warranty: 3 years; with advanced replacement option
Management Software: LSI Storage Authority (LSA) StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure)
Regulatory Certifications: USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/ UL 60950; RoHS; WEEE
OS Support: Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/download-search for details on versions.
