Broadcom [9440-8i] Broadcom LSI 9440-8i 05-50008-02 PCIe 3.1 x8 SAS3408 8 Internal Ports MegaRAID Tri-Mode Storage Adapter 9440-8i.. Product #: 9440-8i based on 0 reviews

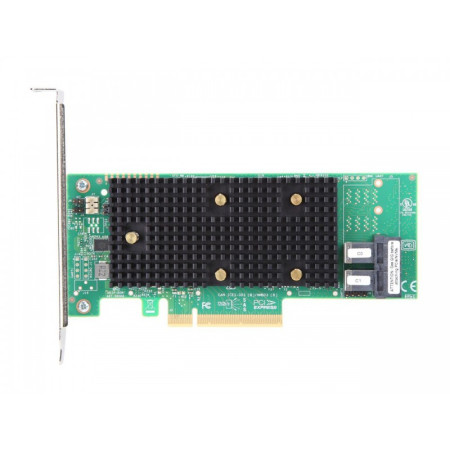

[9440-8i] Broadcom LSI 9440-8i 05-50008-02 PCIe 3.1 x8 SAS3408 8 Internal Ports MegaRAID Tri-Mode Storage Adapter

MANUFACTURER: Broadcom
P/N (รหัสสินค้า): 9440-8i

รับประกันสินค้า 5 ปี:

สินค้ารับประกัน 5 ปี

ผู้รับเหมาและโครงการต่างๆ ราคาพิเศษ SI ราคา พิเศษ

- +

Specifications
Product: 9440-8i
Manufacturer Part #: 05-50008-02
Ports: 8 internal
Connectors: Two SFF-8643
Storage Interface Support: SAS, SATA, PCIe (NVMe)
Max PCIe (NVMe) Direct Attach Devices: Two x4, Two x2 (Direct Attached Only)
Max Devices Per Controller: SAS/SATA: 63 NVMe: 2
Cache Memory: N/A
I/O Processor / SAS Controller: SAS3408
Host Bus Type: PCIe 3.1 x8
Cache Protection: N/A
Physical Dimensions: 6.127″ x 2.712″(155.65 mm x 68.90 mm)
Typical Power: 10.05W
Airflow: 200LFM at 55@C

Operating Conditions
Operating: 0°C to 55°C 20 to 80% non-condensing
Storage: -45°C to 105°C 5 to 95% non-condensing
MTBF (Calculated): >3,000,000 hours at 40°C
Operating Voltage: +12V +/-8%; 3.3V +/-9%
Hardware Warranty: 3 years; with advanced replacement option
Management Software: LSI Storage Authority (LSA) StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure)
Regulatory Certifications: USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/ UL 60950; RoHS; WEEE
OS Support: Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/download-search for details on versions.
