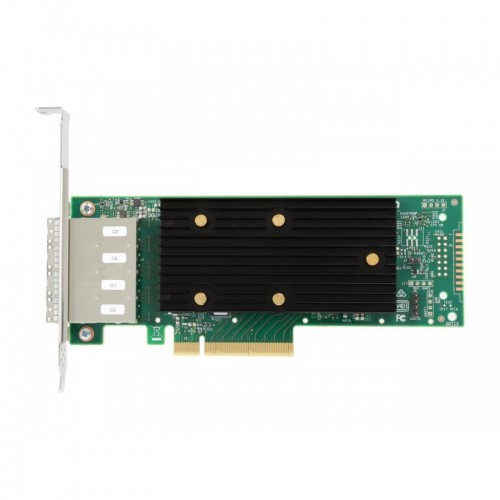

[9400-16e] Broadcom LSI 9400-16e 05-50013-00 PCIe 3.1 x8 SAS3416 16 External Ports Tri-Mode Storage Adapter

Specifications
Product: HBA 9400-16e
Manufacturer Part #: 05-50013-00
Ports: 16 external
Connectors: Four (x4) SFF-8644
Storage Interface Support: SAS, SATA, NVMe (PCIe)
Max NVMe Direct Attach Devices: N/A
Max Devices Per Controller: SAS/SATA: 1024
I/O Processor / SAS Controller: SAS3416
Host Bus Type: PCIe 3.1 x8
Typical Power: 11.18W
Physical Dimensions: 6.600in x 2.712in (167.65 mm x 68.90 mm)
Cable Support: Passive Copper, Active Copper, Active Optical
Operating Conditions: Operating: 10°C to 55°C, 20 to 80% non-condensing Airflow: 200 LFM Storage: -45°C to 105°C, 5 to 95% non-condensing
MTBF (Calculated): >4,500,000 hours at 40°C
Operating Voltage: +12V +/-8%; 3.3V +/-9%
Hardware Warranty: 3 years; with advanced replacement option
Regulatory Certifications: USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438) ; Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22);Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux, VMware. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/download-search for details on versions.
