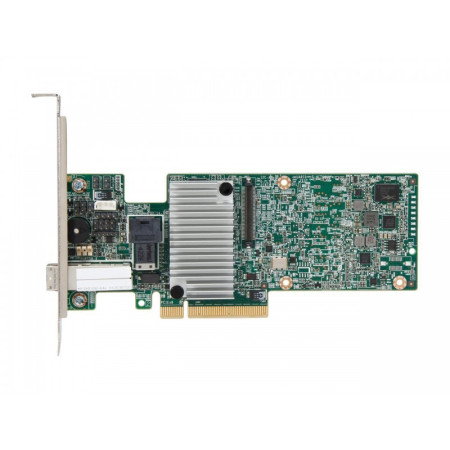

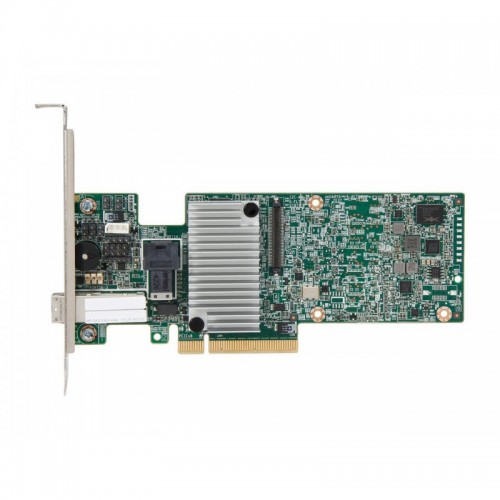

[9380-4i4e] Broadcom LSI 05-25190-02 LSI00439 PCIe 3.0 x8 SAS3108 4 Internal 4 External Ports 12Gb/s SATA+SAS RAID Controller

Specifications

Product: MegaRAID SAS 9380-4i4e
MPN: 05-25190-02
OPN: LSI00439
Solution Provided: Four port internal / Four port external SATA+SAS solution for internal drive storage and external JBOD expansion in a wide variety of performance and capacity-oriented environments using up to 240 SAS or SATA devices
Physical Dimensions: MD2 low profile (6.6” X 2.536”)
Connectors
One mini-SAS SFF8643 internal connector
One mini-SAS SFF8644 external connector
Device Support: Up to 240 SAS and/or SATA devices
Host Bus Type: x8 lane PCI Express 3.0 compliant
Data Transfer Rates: Up to 12Gb/s per port
I/O Processor / SAS Controller: LSISAS3108 dual core RAID on Chip (ROC)
Cache Memory: 1GB 1866MHz DDRIII SDRAM
Cache Protection: Optional CacheVault Flash Module (LSICVM02) – Includes CVFM04, CVPM02, mounting clip, and cable
Key RAID Data Protection Features:
RAID levels 0, 1, 5, and 6
RAID spans 10, 50, and 60
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during array rebuild or reconstruction (RLM)
Single controller Multipathing
Load Balancing
Configurable stripe size up to 1MB
Fast initialization for quick array setup
Check Consistency for background data integrity
SSD Support with SSD Guard™ technology
Patrol read for media scanning and repairing
64 logical drive support
DDF compliant Configuration on Disk (COD)
S.M.A.R.T support
Global and dedicated Hot Spare with Revertible Hot Spare support
Automatic rebuild
Enclosure affinity
Emergency SATA hot spare for SAS arrays
Enclosure management – SES (inband)
SES (inband)
SGPIO (sideband)
Databolt™ bandwidth optimizer technology support for compatible expander-based enclosures
Shielded state drive diagnostic technology
Operating Temperature: Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02): 55°C
Operating Voltage: +3.3V, +12V
MTBF (Calculated): 1,203,345 hours
Hardware Warranty: 3 years, free 5x8 phone support, advanced replacement option
Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
MegaRAID Management Suite:
MegaRAID Storage Manager
StorCLI (command-line interface)
CTRL-R (BIOS configuration utility)
HII (UEFI Human Interface Infrastructure)
SSD Optimization:
MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, highperformance controller cache pools (Optional Upgrade)
MegaRAID Fast Path Software provides high-performance I/O acceleration for SSD arrays connected to 6Gb/s MegaRAID SATA+SAS controllers (Included)
Compliances: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950
OS Support: Extensive support includes Microsoft® Windows® Server 2012/8 & 7/2008/Vista/2003, Linux®, Solaris™ (x86), FreeBSD®, VMware® and more.
