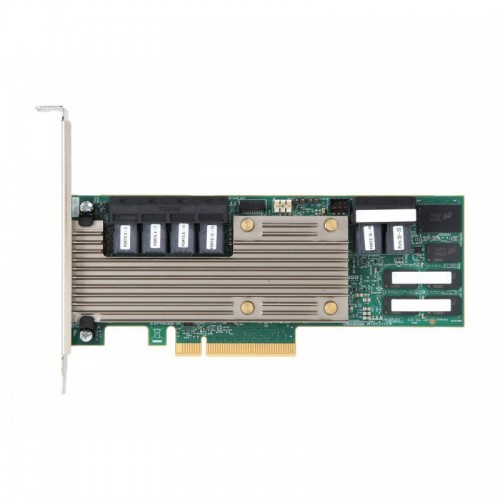

[9361-24i] Broadcom LSI 9361-24i 05-50022-00 PCIe 3.0 x8 SAS3324 16 Internal Ports 12 Gb/s SATA + SAS RAID Controller

Specifications
Product: MegaRAID SAS 9361-24i
MPN: 05-50022-00
Solution Provided: Twenty-four-port internal SAS/SATA RAID solution for high-density and mainstream servers and storage systems requiring high drive count support inside the box.
Physical Dimensions: MD2 low profile (6.600” x 2.712”)/( 167.65 mm x 68.90 mm) *Top edge connector cable exit extends into full height card area.
Connectors: Six SFF8643 x4
Device Support: Up to 240 SAS and/or SATA devices
Host Bus Type: x8 lane PCI Express 3.0 compliant
Data Transfer Rates: Up to 12 Gb/s per port
I/O Processor/SAS Controller: SAS3324 dual core RAID on Chip (ROC))
Operating Temperature: Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (CVPM02): 55°C
Operating Voltage: +3.3V, +12V
MTBF (Calculated): >3,000,000 hours at 40°C
Hardware Warranty: 3 years; with advanced replacement option
MegaRAID Management Suite:
LSA (LSI Storage Authority)
MegaRAID Storage Manager
StorCLI (command-line interface)
CTRL-R (BIOS configuration utility)
HII (UEFI Human Interface Infrastructure)
SSD Optimization: MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools (Optional Upgrade)
Regulatory Certifications: USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22);Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/UL 60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD, Fedora, Debian See www.broadcom.com/support/download-search for details on versions. Contact Oracle support for Oracle driver or software support.
