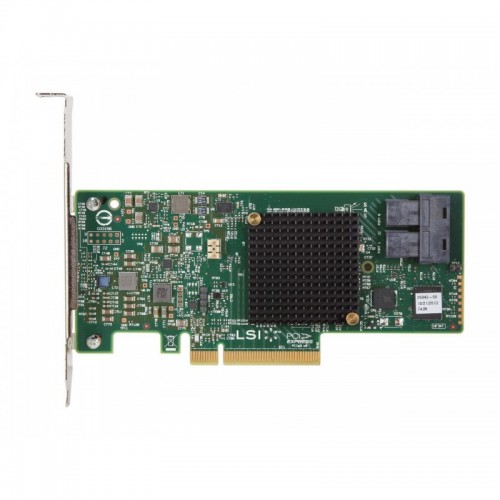

[9341-8i] Broadcom LSI 9341-8i 05-26106-00 LSI00407 PCIe 3.0 x8 SAS3008 8 Internal Ports MegaRAID SATA+SAS RAID Controller

Specifications
Product: MegaRAID SAS 9341-8i
MPN: 05-26106-00
OPN: LSI00407
I/O Controller: LSISAS3008
Solution Provided: Low-cost, green SATA+SAS RAID solution for high-density servers and workstations with the flexibility to use both SATA and SAS hard drives and solid state drives
Physical Dimensions: 2.6” x 6.0”
Connectors: Two, x4, SFF-8643 mini-SAS HD horizontal connector placement
Max Number of Physical Devices
Non-RAID (JBOD Mode): 64
RAID 0: 32 per volume
RAID 1: 2 per volume plus hot spare: RAID 5: 32 per volume
RAID 10: 32 per volume
RAID 50: 32 per volume
Host Bus Type: 8-lane, 5 GT/s PCI Express 3.0 Compliant
Data Transfer Rates: Up to 12Gb/s per port
Key RAID Data Protection Features
RAID levels 0, 1, 5, 10, 50 and JBOD mode
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during array rebuild or RLM
Single controller multipathing (Load balancing)
Drive hot plug support
Drive roaming
Selectable logical drive as boot drive
Virtual Disk (VD) Consistency Check
Fast initialization for quick array setup
Staggered disk spin up
Hot Spare support (up to 8)
Global, dedicated (copy back), enclosure affinity and emergency SATA support
Automatic rebuild support
SafeStore Encryption Services for SED HDDs
Shielded state drive diagnostic technology
Patrol Read media scan and repair
Online HDD firmware update
Error recovery support
SAS TCQ support
SATA NCQ support
Support for native 4K HDDs
Non disk device support
>2TB logical drive support
Soft bad block management
DDF-compliant Configuration on Disk
Foreign Configuration Import
S.M.A.R.T. support
SES (inband) & SGPIO (sideband) management
MegaRAID Management Suite
MegaRAID Storage Manager™ – Now with single login for domain admin
StorCLI (command-line interface)
CTRL-R (BIOS configuration utility)
HII (UEFI Human Interface Infrastructure)
Environments
Operating
0°C to 70°C
5 to 90% Non-condensing
Storage
-45°C to 105°C
5 to 90% Non-condensing
PCI Card Type: 3.3V add-in Card
PCI Voltage: +12V +/-8%
PCI Power: 13.0 W (normal), 19.04 W (max)
PCI Modes: Bus Master DMA
LED Indicators: Internal
Activity/Fault per x4 port – Heartbeat
MTFB: >2,800,000 hours
Compliances: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950
Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
OS Support: Extensive support includes Microsoft® Windows® Server 2012/Vista/2008/Server 2003, Linux®, Solaris™ (x86), FreeBSD®, VMware® and more. Visit the download center for the most complete list of supported operating systems: www.lsi.com/support
Brackets: Full Height and Low-Profile
