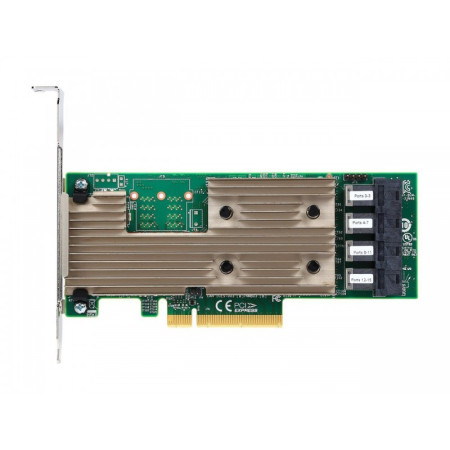

[9305-16i] Broadcom 9305-16i 05-25703-00 PCIe 3.0 x8 SAS3224 16 Internal Ports 12Gb/s SAS Host Bus Adapter

Specifications
Product: SAS 9305-16i
MPN: 05-25703-00
I/O Controller: SAS 3224/ Fusion MPT 2.5
Port Count: 16-port, internal
Connectors: Mini-SAS HD SFF8643 Four (x4)
Storage Connectivity Data Transfer Rates: 12Gb/s SAS 3.0 Compliant
SAS Bandwidth: 1200 MB/s per port (each direction)
Port Configurations
16 ea, x1 ports (individual drives)
4 ea, x4 wide ports
2 ea, x8 wide ports
Host Bus: x8 lane, PCIe 3.0
PCI Data Burst Transfer Rates: Half Duplex x8, PCIe 3.0, 8000 MB/s
Form Factor: Low Profile
Physical Dimensions: 2.7” x 6.6”
Brackets: Low Profile & Full Height
Cable Support: Passive Copper
LED Management: Reference SFF-8485 (SGPIO) compliant
Operating Voltage: +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal): Typical: 16.2W
Device Support: 1024 Non-RAID devices
Environmental
Operating: 0°C to 55°C
Storage: -45°C to 105°C
5 to 90% Non-condensing
Airflow: 200 LFM
MTBF: >3,500,000 hours at 40°C
Regulatory Certifications: USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438) ; Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22);Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/ IEC/UL 60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD, Fedora, Debian
