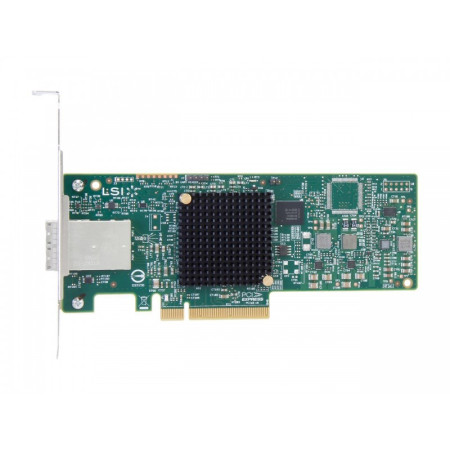

[9300-8e] Broadcom LSI 9300-8e H5-25460-00 LSI00343 PCIe 3.0 x8 SAS3008 8 External Ports 12Gb/s SAS Host Bus Adapter

Specifications

Product: SAS 9300-8e Host Bus Adapter
MPN: H5-25460-00
OPN: LSI00343
I/O Controller: SAS 3008 Fusion MPT 2.5
Port Count: 8-port, external
Connectors: Mini SAS HD SFF8644 Two (x4)
Storage Connectivity Data Transfer Rates: 12Gb/s SAS 3.0 Compliant
SAS Bandwidth: Half Duplex (x8 wide bus) 9600 MB/s
Port Configurations
8 ea, x1 ports (individual drives)
2 ea, x4 wide port
Host Bus: x8 lane, PCIe 3.0
PCI Data Burst Transfer Rates
Half Duplex
x8, PCIe 3.0, 8000 MB/s
Form Factor: Low Profile
Physical Dimensions: 2.6” x 6.6”
Brackets: Full Height and low profile vented
Cable Support: Passive Copper, Active Copper
Operating Voltage: +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal): 14.5W
Device Support: 1024 Non-RAID devices
Environmental
Operating: 0°C to 55°C
Storage: -45°C to 105°C
5 to 90% Non-condensing
Airflow: 200 LFM
MTBF: >2,800,000 hours
Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD See http://www.lsi.com/support/pages/download-search.aspx for details on versions * The HBA supports Solaris 10 and Oracle® provides a built in driver; installation of an LSI driver is not required. For more information on the Oracle Solaris 10 driver and installation, sign in at the following Oracle link: https://support.oracle.com/ Contact Oracle support for Oracle driver or software support.
