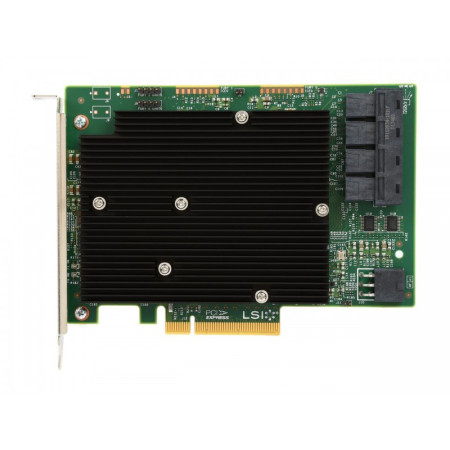

[9300-16i] Broadcom LSI 9300-16i 05-25600-00 LSI00447 PCIe 3.0 x8 SAS3008 16 Internal Ports 12Gb/s SAS Host Bus Adapter

Specifications

Product: SAS 9300-16i Host Bus Adapter
Manufacturer Part #: 05-25600-00
I/O Controller: Two, SAS 3008/ Fusion MPT 2.5
Port Count: 16-port, internal
Connectors: Mini-SAS HD SFF8643 Four (x4)
Storage Connectivity Data Transfer Rates: 12Gb/s SAS 3.0 Compliant
SAS Bandwidth: Half Duplex (x16 wide bus) 19200 MB/s
Port Configurations
16 ea, x1 ports (individual drives)
4ea, x4 wide ports
2 ea, x8 wide ports
Host Bus: x8 lane, PCIe 3.0
PCI Data Burst Transfer Rates
Half Duplex
x8, PCIe 3.0, 8000 MB/s
Form Factor: Full height
Physical Dimensions: 4.4” x 6.1”
Brackets: Full Height
Cable Support: Passive Copper, Active Optical
LED Management: Reference SFF-8485 (SGPIO) compliant
Operating Voltage: +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal): 27W
Device Support: 1024 Non-RAID devices
Environmental
Operating: 0°C to 55°C
Storage: -45°C to 105°C
5 to 90% Non-condensing
Airflow: 200 LFM
MTBF: >2,500,000 hours
Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD See http://www.lsi.com/support/pages/download-search.aspx for details on versions * The HBA supports Solaris 10 and Oracle® provides a built in driver; installation of an LSI driver is not required. For more information on the Oracle Solaris 10 driver and installation, sign in at the following Oracle link: https://support.oracle.com/ Contact Oracle support for Oracle driver or software support.
