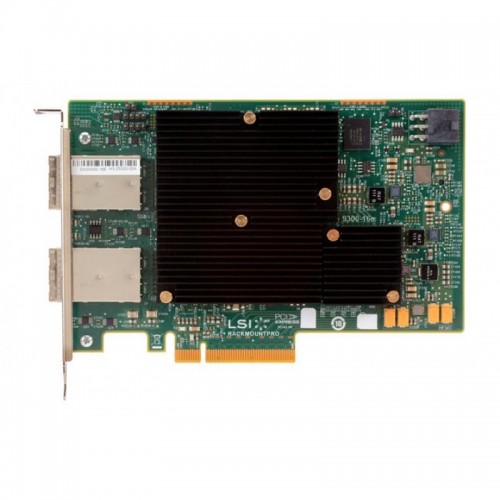

[9300-16e] Broadcom LSI 9300-16e H5-25520-00 LSI00342 PCIe 3.0 x8 SAS3008 16 External Ports 12Gb/s SAS Host Bus Adapter

Specifications
Product: SAS 9300-16e Host Bus Adapter
MPN: H5-25520-00
OPN: LSI00342
I/O Controller: Two, SAS 3008/ Fusion MPT 2.5
Port Count: 16-port, external
Connectors: Four (x4) mini-SAS HD external connector (SFF8644)
Storage Connectivity; Data Transfer Rates: 16 ports; 12Gb/s SAS 3.0 compliant
SAS Bandwidth: Half Duplex (x4 wide bus) 4800 MB/s
Port Configurations
16 ea, x1 ports (individual drives)
4ea, x4 wide ports
2 ea, x8 wide ports
Host Bus: x8 lane, PCIe 3.0
PCI Data Burst Transfer Rates
Half Duplex
x8, PCIe 3.0, 8000 MB/s
Brackets: Full height
Physical Dimensions: 4.4” x 6.6”
Brackets: Full Height
Cable Support: Passive Copper, Active Copper
Operating Voltage: +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal): 28.6W
Device Support: 1024 Non-RAID SATA/SATA devices per controller
Environmental
Operating: 0°C to 55°C
Storage: -45°C to 105°C
5 to 90% Non-condensing
Airflow: 200 LFM
MTBF: >1,500,000 hours
Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD See http://www.lsi.com/support/pages/download-search.aspx for details on versions * The HBA supports Solaris 10 and Oracle® provides a built in driver; installation of an LSI driver is not required. For more information on the Oracle Solaris 10 driver and installation, sign in at the following Oracle link: https://support.oracle.com/ Contact Oracle support for Oracle driver or software support.
