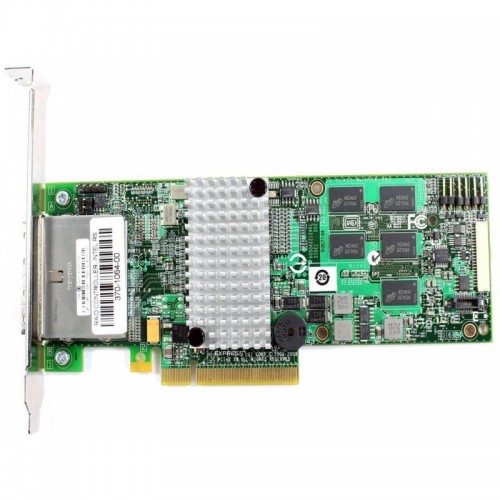

[9280-8e] Broadcom LSI 9280-8e LSI00205 PCIe 2.0 x8 SAS2108 8 External 6Gb/s SAS/SATA Ports RAID Controller

Specifications
Product: MegaRAID SAS 9280-8e
MPN: L5-25152-24
OPN: LSI00205
Solution Provided: Eight-port external SATA+SAS RAID solution for servers requiring the scalability and flexibility to use up to 240 SATA or SAS hard drives or SSDs in external storage environments.
Physical Dimensions: MD2 Low profile (6.6” X 2.536”)
Connectors: Two Mini-SAS SFF-8088 external connectors
Device Support: Up to 240 SATA and/or SAS hard drives and SSDs
Host Bus Type: x8 lane PCI Express 2.0 Compliant
Data Transfer Rates: Up to 6Gb/s per port
I/O Processor/SAS Controller: LSI SAS 2108 RAID-on-Chip (ROC)
Cache Memory: 512MB 800MHz DDR II SDRAM
Battery Backup Unit: LSIiBBU07, an intelligent battery backup module option that directly connects to the adapter
Key RAID Data Protection Features:
RAID levels 0, 1, 5, and 6
RAID spans 10, 50 and 60
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during array rebuild or reconstruction (RLM)
Single controller Multipathing (failover)
Load Balancing
Configurable stripe size up to 1MB
Fast initialization for quick array setup
Check Consistency for background data integrity
SafeStore Encryption Services
Instant Secure Erase
Local Key Management
SSD Support with SSD Guard
Patrol read for media scanning and repairing
64 logical drive support
DDF compliant Configuration on Disk (COD)
S.M.A.R.T support
Global and dedicated Hot Spare with Revertible Hot Spare support
Automatic rebuild
Enclosure affinity
Emergency SATA hot spare for SAS arrays
Enclosure management
SES (inband)
SGPIO (sideband)
Operating Temperature: Maximum ambient: 60°C (44.5°C w/iBBU)
Operating Voltage: +3.3V
Warranty: 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management:
MegaRAID Management Suite
MegaRAID Storage Manager™
MegaCLI (command-line interface)
WebBIOS
OS Support: Extensive support includes Microsoft® Windows® Vista/2008/Server 2003, Linux® , Solaris™ (x86), FreeBSD® , VMware® and more.
