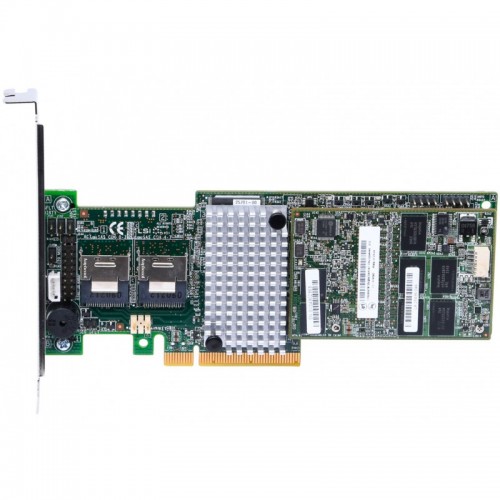

[9270CV-8i] Broadcom LSI 9270CV-8i LSI00327 PCIe 3.0 x8 LSISAS2208 8 Internal Ports 6Gb/s SATA+SAS RAID Controller w/ CacheVault

Specifications

Product: MegaRAID SAS 9270CV-8i
Solution Provided: Eight-port internal SAS solution for performance-hungry applications using up to 128 SAS, SATA and solid state drives (SSDs)
Physical Dimensions: MD2 Low profile (6.6” X 2.536”)
Internal Connectors: Two Mini-SAS SFF8087 internal connectors (top mount)
Device Support: Up to 6Gb/s per port
Host Bus Type: x8 lane PCI Express 3.0 compliant
Data Transfer Rates: Up to 6Gb/s per port
I/O Processor/SAS Controller: LSISAS2208 Dual-Core RAID on Chip (ROC)
Cache Memory: 1 GB 1333MHz DDRIII SDRAM
Cache Protection: MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)
Operating Temperature: Maximum ambient: Controller Card: 60°C, with optional LSIiBBU09: 55°C
Operating Voltage: +3.3V, +12V
MTBF (Calculated): 766,841 hours
