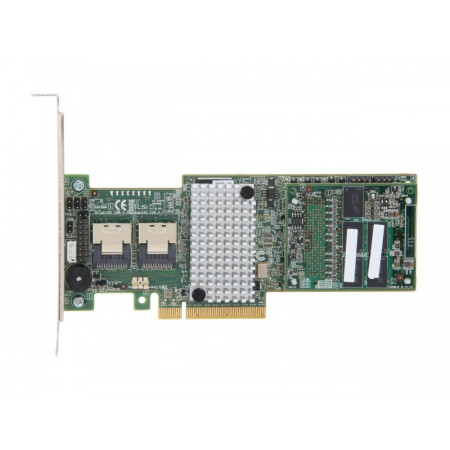

[9270-8i] Broadcom LSI 9270-8i LSI00326 PCIe 3.0 x8 LSISAS2208 8 Internal Ports 6Gb/s SATA+SAS RAID Controller

Specifications

Product: MegaRAID SAS 9270-8i
MPN: L5-25422-19
OPN: LSI00326
Solution Provided: Eight-port internal SAS solution for performance-hungry applications using up to 128 SAS, SATA and solid state drives (SSDs)
Physical Dimensions: MD2 Low profile (6.6” X 2.536”)
Connectors: Two Mini-SAS SFF8087 internal connectors (top mount)
Device Support: Up to 128 SAS and/or SATA hard drives and SSDs
Host Bus Type: x8 lane PCI Express 3.0 compliant
Data Transfer Rates: Up to 6Gb/s per port
I/O Processor/SAS Controller: LSI SAS 2208 Dual-Core RAID on Chip (ROC)
Cache Memory: 1 GB 1333MHz DDRIII SDRAM
Cache Protection: MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279)
Key RAID Data Protection Features:
RAID levels 0, 1, 5, and 6
RAID spans 10, 50 and 60
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during array rebuild or reconstruction (RLM)
Single controller Multipathing (failover)
Load Balancing
Configurable stripe size up to 1MB
Fast initialization for quick array setup
Check Consistency for background data integrity
SSD Support with SSD Guard™ technology
Patrol read for media scanning and repairing
64 logical drive support
DDF compliant Configuration on Disk (COD)
S.M.A.R.T support
Global and dedicated Hot Spare with Revertible Hot Spare support
Automatic rebuild
Enclosure affinity
Emergency SATA hot spare for SAS arrays
Enclosure management
SES (inband)
SGPIO (sideband)
Operating Temperature: Maximum ambient: Controller Card: 60°C, with optional LSIiBBU09: 55°C
Operating Voltage: +3.3V, +12V
MTBF (Calculated): 766,841 hours
Warranty: 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management:
MegaRAID Management Suite
MegaRAID Storage Manager™
MegaCLI (command-line interface)
WebBIOS
Optional SSD Optimization:
MegaRAID CacheCade Software leverages SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools
MegaRAID Fast Path Software provides high-performance I/O acceleration for SSD arrays connected to 6Gb/s MegaRAID SATA+SAS controllers
OS Support: Extensive support includes Microsoft® Windows® Vista/2008/Server 2003, Linux® , Solaris™ (x86), FreeBSD® , VMware® and more.
