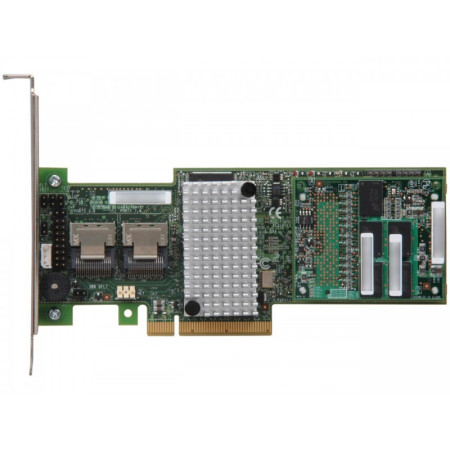

[9265-8i] Broadcom LSI 9265-8i LSI00277 PCIe 2.0 x8 LSISAS2208 8 Internal Ports 6Gb/s SATA SAS RAID Controller

Specifications

Product: MegaRAID SAS 9265-8i
Single Pack: LSI00277
Kit: LSI00278
Solution Provided: Eight-port internal SAS solution for performance-hungry applications using up to 128 SAS, SATA and solid state drives (SSDs)
Physical Dimensions: MD2 Low profile (6.6” X 2.536”)
Connectors: Two Mini-SAS SFF8087 internal connectors
Device Support: Up to 128 SATA and/or SAS hard drives and SSDs
Host Bus Type: x8 lane PCI Express 2.0 Compliant
Data Transfer Rates: Up to 6Gb/s per port
I/O Processor/SAS Controller: LSISAS2208 Dual-Core RAID on Chip (ROC)
Cache Memory: 1 GB 1333MHz DDRIII SDRAM
Battery Backup Unit: LSIiBBU09, a heat-tolerant intelligent battery back-up module; remote mount
Key RAID Data Protection Features:
RAID levels 0, 1, 5, and 6
RAID spans 10, 50 and 60
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during arrays array
rebuild or reconstruction (RLM)
Single controller Multipathing (failover)
Load BalancingConfigurable stripe size up to 1MB
Fast initialization for quick array setup
Check Consistency for background data integrity
SafeStore™ Encryption Services– Instant Secure Erase–
(Full SafeStore Encryption key sold separately)
SSD Support with SSD Guard™
Patrol read for media scanning and repairing
64 logical drive support
Up to 64TB LUN support
DDF compliant Configuration on Disk (COD)
S.M.A.R.T support
Global and dedicated Hot Spare with Revertible
Hot Spare support
– Automatic rebuild
– Enclosure affinity
– Emergency SATA hot spare for SAS arrays
Enclosure management
– SES (inband)
– SGPIO (sideband)
Operating Temperature: Maximum ambient: 60°C (55°C w/iBBU)
Operating Voltage: +3.3V
MTBF (Calculated): 766,841 hours
Hardware Warranty: 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management
MegaRAID Management Suite
MegaRAID Storage Manager
MegaCLI (command-line interface)
WebBIOS
Optional SSD Optimization: MegaRAID CacheCade Software provides 50x boost in READs from SSD Cache
MegaRAID FastPath Software delivers up to 300,000 IOPs performance on SSD arrays
