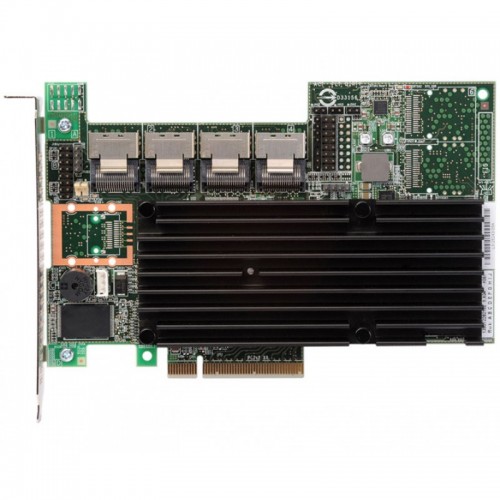

[9260-16i] Broadcom LSI 9260-16i LSI00208 PCIe 2.0 x8 16 Internal Ports MegaRAID 6Gb/s SATA and SAS RAID Controller

Specifications
Product: MegaRAID SAS 9260-16i
MPN: L5-25243-06
OPN: LSI00208
Solution Provided: Sixteen-port internal SATA+SAS solution for internal servers and storage systems requiring high drive count support
Physical Dimensions: Half-Length, Full Height (6.6” x 4.376”)
Connectors: Four Mini-SAS SFF8087 4i internal connectors
Device Support: Up to 128 SAS and/or SATA drives
Host Bus Type: x8 lane PCI Express 2.0 Compliant
Data Transfer Rates: Up to 6Gb/s per port
I/O Processor/SAS Controller: LSI SAS 2108 RAID on Chip (ROC) and LSI SAS 2x36 Expander
Cache Memory: 512MB 800MHz DDR II SDRAM
Battery Backup Unit: LSIiBBU07, an intelligent battery backup module option that connects remotely to the RAID controller
Key RAID Data Protection Features:
RAID levels 0, 1, 5, and 6
RAID spans 10, 50 and 60
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Auto resume after loss of system power during array rebuild or reconstruction (RLM)
Single controller Multipathing (failover)
Load Balancing
Configurable stripe size up to 1MB
Fast initialization for quick array setup
Check Consistency for background data integrity
SSD Support with SSD Guard™
Patrol read for media scanning and repairing
64 logical drive support
DDF compliant Configuration on Disk (COD)
S.M.A.R.T support
Global and dedicated Hot Spare with Revertible Hot Spare support
Automatic rebuild
Enclosure affinity
Emergency SATA hot spare for SAS arrays
Enclosure management
SES (inband) Storage Applicance
SGPIO (sideband)
Operating Temperature: Maximum ambient: 60°C (45°C w/iBBU)
Operating Voltage: +3.3V
Warranty: 3 years, free advanced technical support, advanced replacement option
Regulatory Certifications: EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management:
MegaRAID Management Suite
MegaRAID Storage Manager™
MegaCLI (command-line interface)
WebBIOS
OS Support: Extensive support includes Microsoft® Windows® Vista/Server 2003, Linux® and more
MTFB: 927,561 Hours
