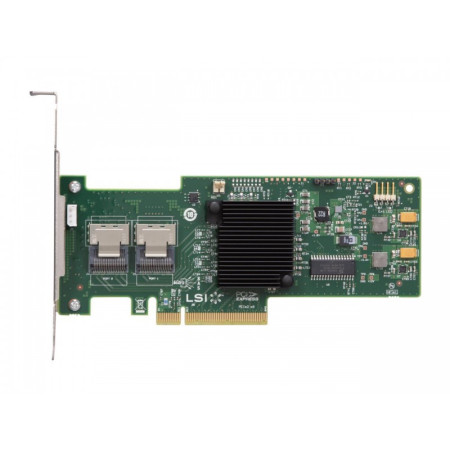

[9240-8i] Broadcom LSI 9240-8i LSI00200 PCIe 2.0 x8 SAS2008 8 Internal Ports MegaRAID 6Gb/s SATA+SAS RAID Controller

Specifications
Product: MegaRAID SAS 9240-8i
MPN: L5-25083-05
OPN: LSI00200
Solution Provided: Low-cost, green SATA+SAS RAID solution for high-density servers and workstations with the flexibility to use both SATA and SAS hard drives and solid state drives
Physical Dimensions: Low profile (6.6”x 2.536”)
Connectors: Internal; Two X4 Mini-SAS SFF8087 (vertical orientation)
Max Number of Physical Devices:
Non-RAID: 64
RAID 0: 16 per volume
RAID 1: 2 per volume plus hotspare: RAID 5: 16 per volume
RAID 10: 16 per volume
RAID 50: 16 per volume
Host Bus Type: 8-lane, 5 GT/s PCI Express 2.0 Compliant
Data Transfer Rates: Up to 6Gb/s per port
SAS Controller: LSI SAS 2008
Key RAID Data Protection Features:
RAID levels 0, 1, 5, 10, 50 and JBOD mode
Selectable logical drive as boot drive
Consistency Check
Fast initialization for quick array setup
Native Command Queuing
Staggered spin up for SATA drives
Hot plug support
Global hot spare support
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Single controller Multipathing (failover)
Load balancing
SSD support with SSD Guard
Automatic rebuild of hot spare drives
Auto resume during array rebuild
Fault LED support through SGPIO
>2TB logical drive support
Soft bad block management
Error recovery support
DDF compliant Configuration on Disk
S.M.A.R.T. support
Patrol read for media scanning and repairing
Enclosure management
— SES (inband)
— SGPIO (sideband)
RAID Management:
MegaRAID Management Suite
MegaRAID Storage Manager™
MegaCLI (command-line interface)
WebBIOS
Environments:
Operating
10°C to 55°C
20 to 80% Non-condensing:
Storage
-40°C to +70°C
5 to 90% Non-condensing
PCI Card Type: 3.3V Add-in Card
PCI Voltage: +12V ±10%
PCI Power: 13.5W
PCI Modes: Bus Master DMA
LED Indicators: Internal; Activity/Fault per x4 port – Heartbeat
MTFB: >2,000,000 Hours
Compliances: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950
OS Support: Microsoft® Windows® , Linux® (SuSE® , Red Hat® ), Solaris® , Vmware® . See www.lsi.com/support for details on versions.
Brackets: Full Height and Low-Profile
