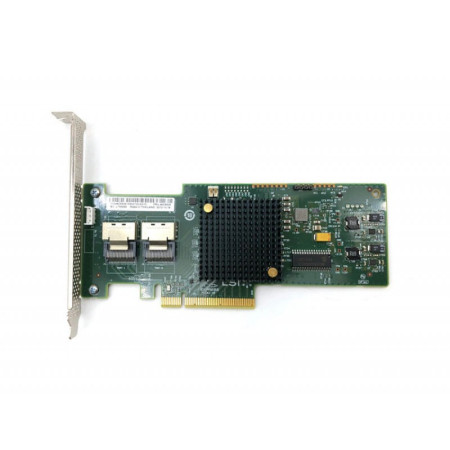

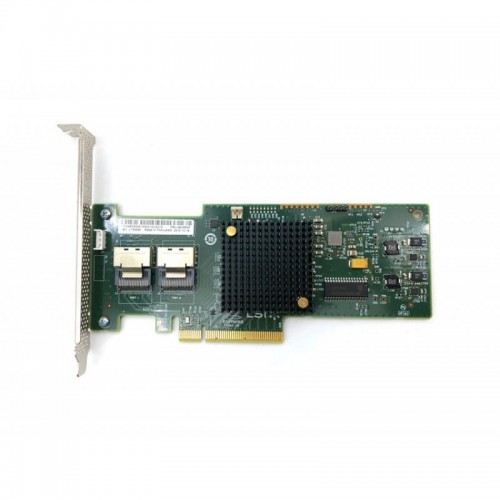

[9223-8i] Broadcom LSI 9223-8i 46C8928 IBM M1115 PCIe 2.0 x8 SAS/SATA Host Bus Adapter

Specifications
Part Number: LSI 9223-8i, 81Y4448, 46C8928
PCI Low Profile, Half-length - MD2 form factor
Eight internal 6 Gbps SAS/SATA ports
Two internal Mini-SAS connectors (SFF-8087)
6 Gbps throughput per port
533 MHz IBM PowerPC processor with LSI SAS2008 6 Gbps RAID on Chip (ROC) controller
PCI Express 2.0 x8 host interface
Support for RAID levels 0, 1, and 10 standard; support for RAID 5, 50 with optional upgrade
Zero Controller Cache, no battery/flash backup
Support for SAS and SATA hard disk drives (HDDs) and solid-state drives (SSDs)
Support for simple swap and hot swap drives
Support for intermixing SAS and SATA HDDs and SSDs. Mixing different types of drives in the same array (drive group) not recommended
Connection to up to 32 internal drives, depending on the server model (Up to 16 physical drives, including hot spares, can be used in RAID configurations. The drives beyond the limit of 16 are used as stand-alone HDDs in a non-RAID environment.)
Optional support for self-encrypting drives (SEDs) with MegaRAID SafeStore
Support for up to 16 virtual drives, up to 16 drive groups, up to 16 virtual drives per one drive group, and up to 16 physical drives per one drive group
Support for virtual drive sizes up to 64 TB
Configurable stripe size up to 64 KB
Compliant with Disk Data Format (DDF) configuration on disk (COD)
S.M.A.R.T. support
MegaRAID Storage Manager management software
