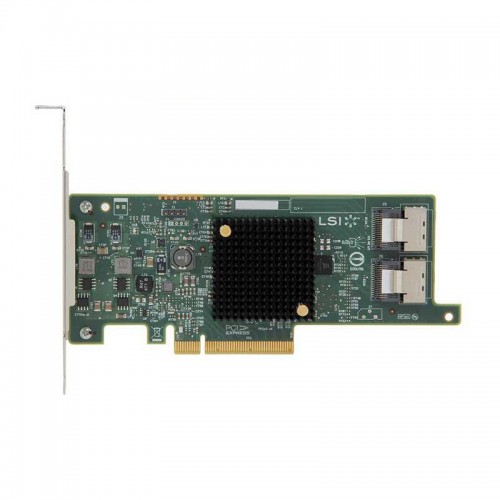

[9217-8i] Broadcom LSI 9217-8i SAS2308-8I PCIe 3.0 x8 SAS2308 8 Internal Ports 6Gb/s SAS+SATA Host Bus Adapter

Specifications
Product: SAS 9217-8i Host Bus Adapter
I/O Controller: LSI SAS2308/ Fusion MPT 2.0
Storage Connectivity Data Transfer Rates: 8 ports, 6Gb/s SAS 2.1 Compliant
SAS Bandwidth: Half Duplex, 600 MB/s per lane
Port Configurations:
8 ea, x1 ports (individual drives)
2 ea, x4 wide port
Host Bus: x8 lane, PCI Express 3.0 compliant
PCI Data Burst Transfer Rates: Half Duplex, x8, PCIe, 8000 MB/s
Physical Dimensions: Low Profile (2.6” x 6.6”)
Connectors: Two mini-SAS internal connectors (SFF8087)
Brackets: Full height and low profile
Cable Support: Passive Copper
PCI Card Type: 3.3 V Add-in Card
Operating Voltage: +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal): 9.8W
Device Support: 256 Non-RAID devices
Environmental
Operating:
0°C to 55°C
5 to 90% Non-condensing
Storage:
-45°C to 105°C
5 to 90% Non-condensing
MTBF: >2,000,000 Hours
Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware. See http://www.lsi.com/channel/ChannelDownloads for details on versions and support
