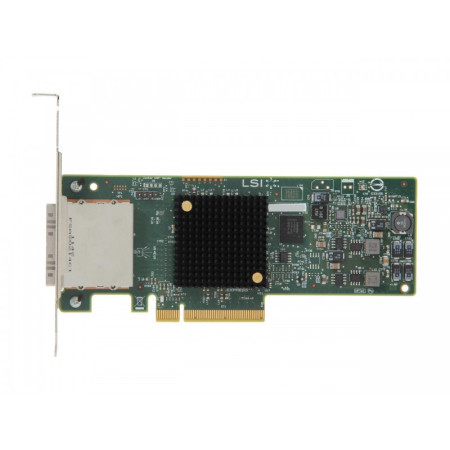

[9207-8e] Broadcom LSI 9207-8e LSI00300 PCIe 3.0 x8 SAS2308 8 External Ports 6Gb/s SAS+SATA Host Bus Adapter

Specifications

Product: SAS 9207-8e Host Bus Adapter
OPN: LSI00300
I/O Controller: SAS 2308/ Fusion MPT 2.0
Storage Connectivity; Data Transfer Rates: 8 ports, 6Gb/s SAS 2.1 Compliant
SAS Bandwidth: Half Duplex, 600 MB/s per lane
Port Configurations:
8 ea, x1 ports (individual drives)
2 ea, x4 wide port
Host Bus: x8 lane, PCI Express 3.0 compliant
PCI Data Burst Transfer Rates: Half Duplex, x8, PCIe, 8000 MB/s
Physical Dimensions: Low Profile (2.7” x 6.6”)
Connectors: Two mini-SAS external connectors (SFF8088)
Brackets: Full height and low profile
Cable Support: Passive Copper, Active Copper
PCI Card Type: 3.3 V Add-in Card
Operating Voltage: +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal): 9.8W
Device Support: 1024 Non-RAID SAS/SATA devices
Environmental
Operating:
0°C to 55°C
5 to 90% Non-condensing
Storage:
-45°C to 105°C
5 to 90% Non-condensing
MTBF: >2,000,000 Hours
Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware
See http://www.lsi.com/support/pages/download-search.aspx for details on versions
