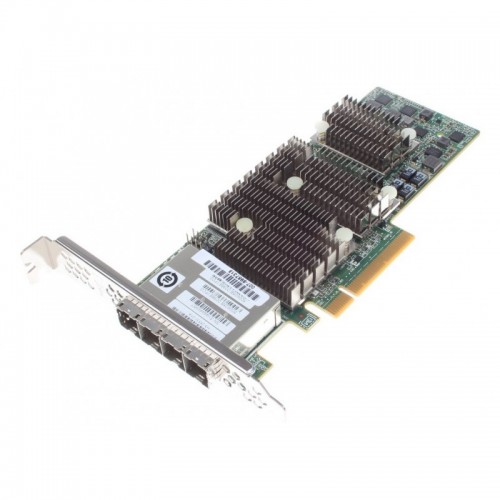

[9206-16e] Broadcom LSI 9206-16e LSI00299 PCIe 3.0 x8 SAS2308 16 External Ports 6Gb/s SAS+SATA Host Bus Adapter

Specifications
Product: SAS 9206-16e Host Bus Adapter
OPN: LSI00299
I/O Controller: Two, LSISAS2308/ Fusion MPT 2.0
Storage Connectivity; Data Transfer Rates: 16 ports; 6Gb/s SAS 2.1 compliant
SAS Bandwidth: Half Duplex, 2400MB/s, x4, 6Gb/s SAS lanes
Port Configurations:
16 ea, x1 ports (individual drives)
4 ea, x4 wide ports
2ea , x8 wide ports
Host Bus: x8 lane, PCI Express 3.0 compliant
PCI Data Burst Transfer Rates: Half Duplex, 8000MB/s, x8, PCIe 3.0
Physical Dimensions: 68.90 x 167.65 mm
Connectors: Four (x4) mini-SAS HD external connector (SFF8644)
Brackets: Full height and low profile
Cable Support: Passive Copper, Active Copper, Active Optical
PCI Card Type: 3.3 V Add-in Card
Operating Voltage: +12V +/-8%; 3.3V +/-9%
PCI Power (Nominal): 25.8W
Device Support: 1024-SAS/SATA devices
Environmental
Operating:
0°C to 55°C
5 to 90% Non-condensing
Storage:
-45°C to 105°C
5 to 90% Non-condensing
MTBF: >1,300,000 hours
Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware , FreeBSD. See http://www.lsi.com/channel/ChannelDownloads for details on versions
