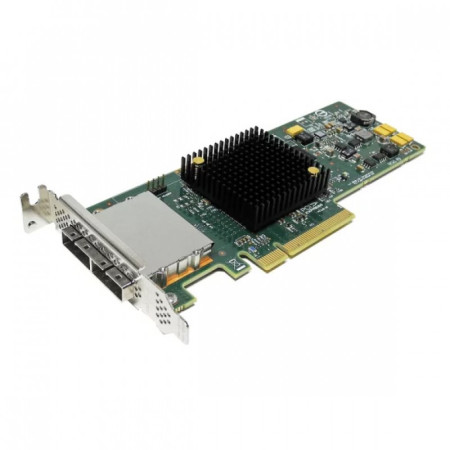

[9205-8e] Broadcom LSI 9205-8e LSI00285 PCIe 2.0 x8 LSISAS2308 8 External Ports 6Gb/s SAS+SATA Host Bus Adapter

Specifications
Product: LSI SAS 9205-8e
OPN: LSI00285
I/O Controller: LSISAS2308, Fusion MPT 2.0
Storage Connectivity Data Transfer Rates: 8 ports, 6Gb/s SAS 2.1 Compliant
SAS Bandwidth: Half Duplex; 600 MB/s per lane
Port Configurations
8 ea, x1 ports (individual drives)
2 ea, x4 wide ports
Host Bus: x8 lane, PCI Express 2.0
PCI Data Burst Transfer Rates: Half Duplex; x8, PCIe, 4000 MB/s
Physical Dimensions: Low Profile (2.7” x 6.6”)
Connectors: Two mini-SAS external connectors (SFF8088)
Brackets: Full height and low profile
Cable Support: Passive
PCI Card Type: 3.3 V Add-in Card
Operating Voltage: +12V +/-8%; 3.3V +/-8%
PCI Power (Nominal): 9W typical (Airflow min 200 LFM)
Device Support: 1024 Non-RAID SAS/SATA devices
Environmental:
Operating:
0°C to 55°C
5 to 90% Non-condensing
Storage:
-45°C to 105°C
5 to 90% Non-condensing
MTBF: >3,000,000 hours
Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/ New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware. See http://www.lsi.com/channel/ChannelDownloads for details on versions
